| Nominal Bore: | 7 1/16"--29 1/2" | Pressure: | 2000 ~15000psi |
|---|---|---|---|
| Material: | Carbon Steel | Standard: | API 6A |
| Application: | Oilfield Wellhead | Package: | Wooden Case |
| Highlight: | Drilling Wellhead Casing Spool,15000psi Wellhead Casing Spool,Oilfield Casing Spool |
||

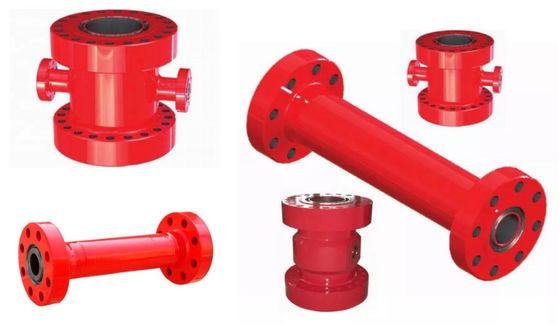

High Performance Drilling Casing Spool , Wellhead Casing Spool
Product Introduction
Casing spool has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied. Our Casing spools are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. They can be used for single completions and model of dual completions.

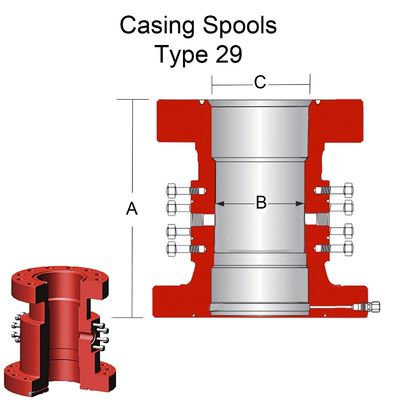

Casing Spool uses a straight bore based on the same reliable design as the C-22 except the bowl is 2 inches deeper, permiting the acceptance of the minimal-deflection C-29 Casing Hanger. This allows extreme-load casing-hanging capacity compared with the C-22 profile. C-29 Casing Spools normally are furnished with studded outlets, and threaded outlets are available upon request. Bottom preparation can include PE seal or X-bushing secondary seals. HPE seals for high-performance frac wells are available upon request.
Design Advantages of Our Casing/Tubing Drilling Spool
Technical Parameters of Casing Drilling Spool
| Drill Spool Model | JD-FS18-35 | JD-FS18-70 | JD-FS18-105 | JD-FS28-35 | JD-FS28-70 | JD-FS28-105 |
| Nominal Diameter (mm) | Φ185 | Φ185 | 180 | 280 | Φ280 | 280 |
| Working Pressure (MPa) | 35 | 70 | 105 | 35 | 70 | 105 |
| Intensive Pressure (MPa) | 70 | 105 | 105 | 70 | 105 | 105 |
| By-pass Diameter(mm) | Φ103 | Φ103/Φ78 | Φ103/Φ78 | Φ103 | Φ103/Φ78 | Φ103/Φ78 |
| Top and Bottom Connection Flange | API, 6B 1835 R46 | API 6BX 1870 BX156 | API 6BX 18-105 BX156 | API, 6B 1835 R46 | API 6BX18-105 BX156 | API 6BX18-105 BX156 |
| Side Connection Flange | API, 6B 103-35 R39 | API 6BX 103-70 BX155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | API, 6B 103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX103-105 ×155 (Φ103) |
| Sealing Time (S) | / | API 6BX 7870 BX154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | API 6BX 78-105 ×154 (Φ78) | API 6BX78-105 ×154 (Φ78) |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
680×395 ×584 |
830×480×600 | 880×505×700 |
950×585 ×650 |
950×655×650 | 1,050×812×800 |
| Weight (kg) | 620 | 600 | 900 | 850 | 800 | 1,800 |
| Drill Spool Model | JD-FS35-21 | JD-FS35-35 | JD-FS35-70 | JD-FS35-105 | JD-FS53-21 | JD-FS54-14 |
| Nominal Diameter (mm) | Φ346 | Φ346 | Φ346 | Φ346 | Φ530 | Φ540 |
| Working Pressure (MPa) | 21 | 35 | 70 | 105 | 21 | 14 |
| Intensive Pressure (MPa) | / | 70 | 105 | 105 | / | / |
| By-pass Diameter(mm) | / | Φ103 |
Φ103 Φ78 |
Φ103 Φ78 |
/ | / |
| Top and Bottom Connection Flange | / | API, 6B1835 R46 | API 6BX 18-105 BX156 | API 6BX 18-105 BX156 | / | / |
| Side Connection Flange | / | API, 6B103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | / | / |
| Sealing Time (S) | / | / | API 6BX 78-105 ×154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | / |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
950×610 ×600 |
1,100×672 ×650 |
1,100×768 ×650 |
1,390×880 ×1,000 |
1,250×812 ×800 |
1,250×812 ×800 |
| Weight (kg) | 1,050 | 1,100 | 1,280 | 2,100 | / | / |
Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. specializes on the manufacturing all sizes and pressure ratings used for oilfield applications. So many equipments have been applied on many oilfields all over the world. We can also design customizable ideal unions for reliable and consistent performance on their production system.
At present, the company has formed more than 50 series and more than 100 specifications of products, which have been widely used in all oil fields in China and have been exported to Europe, America, Southeast Asia, the Middle East, Central Asia, and the North. Africa and other regions.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
