Product Details:
Payment & Shipping Terms:
|
| Nominal Bore: | 7 1/16"--29 1/2" | Pressure: | 2000 ~15000psi |
|---|---|---|---|
| Application: | Energy & Mining | Material: | Carbon Steel |
| Quality: | High Level | Advantage: | High Performance |
| Highlight: | Oilfield Wellhead Casing Tubing Spool,15000psi Casing Tubing Spool,Abrasion Resistance Casing Tubing Spool |
||

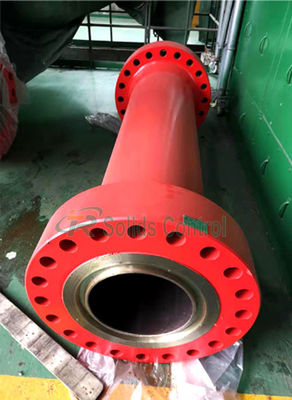

Abrasion Resistance Wellhead Casing Tubing Spool for Oilfield
Product Introduction
Casing spool is the very important equipment used in drilling process, casing spool can control the wellhead pressure. Casing spool are often flange ended on the top of the casing head and connected with the bottom of the tubing head the become a part of the wellhead system of the oil well.
We manufacture the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).We manufacture the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).

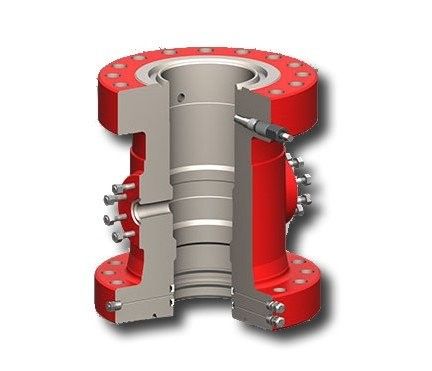

Design Features of Our Casing/Tubing Drilling Spool
Key Parameters of Casing/Tubing Drilling Spool
| Drill Spool Model | JD-FS18-35 | JD-FS18-70 | JD-FS18-105 | JD-FS28-35 | JD-FS28-70 | JD-FS28-105 |
| Nominal Diameter (mm) | Φ185 | Φ185 | 180 | 280 | Φ280 | 280 |
| Working Pressure (MPa) | 35 | 70 | 105 | 35 | 70 | 105 |
| Intensive Pressure (MPa) | 70 | 105 | 105 | 70 | 105 | 105 |
| By-pass Diameter(mm) | Φ103 | Φ103/Φ78 | Φ103/Φ78 | Φ103 | Φ103/Φ78 | Φ103/Φ78 |
| Top and Bottom Connection Flange | API, 6B 1835 R46 | API 6BX 1870 BX156 | API 6BX 18-105 BX156 | API, 6B 1835 R46 | API 6BX18-105 BX156 | API 6BX18-105 BX156 |
| Side Connection Flange | API, 6B 103-35 R39 | API 6BX 103-70 BX155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | API, 6B 103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX103-105 ×155 (Φ103) |
| Sealing Time (S) | / | API 6BX 7870 BX154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | API 6BX 78-105 ×154 (Φ78) | API 6BX78-105 ×154 (Φ78) |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
680×395 ×584 |
830×480×600 | 880×505×700 |
950×585 ×650 |
950×655×650 | 1,050×812×800 |
| Weight (kg) | 620 | 600 | 900 | 850 | 800 | 1,800 |
| Drill Spool Model | JD-FS35-21 | JD-FS35-35 | JD-FS35-70 | JD-FS35-105 | JD-FS53-21 | JD-FS54-14 |
| Nominal Diameter (mm) | Φ346 | Φ346 | Φ346 | Φ346 | Φ530 | Φ540 |
| Working Pressure (MPa) | 21 | 35 | 70 | 105 | 21 | 14 |
| Intensive Pressure (MPa) | / | 70 | 105 | 105 | / | / |
| By-pass Diameter(mm) | / | Φ103 |
Φ103 Φ78 |
Φ103 Φ78 |
/ | / |
| Top and Bottom Connection Flange | / | API, 6B1835 R46 | API 6BX 18-105 BX156 | API 6BX 18-105 BX156 | / | / |
| Side Connection Flange | / | API, 6B103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | / | / |
| Sealing Time (S) | / | / | API 6BX 78-105 ×154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | / |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
950×610 ×600 |
1,100×672 ×650 |
1,100×768 ×650 |
1,390×880 ×1,000 |
1,250×812 ×800 |
1,250×812 ×800 |
| Weight (kg) | 1,050 | 1,100 | 1,280 | 2,100 | / | / |
Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city, China. We have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
