API 6A Casing Spool for Oilfield Casing Head / Wellhead Casing Spool
Product Introduction

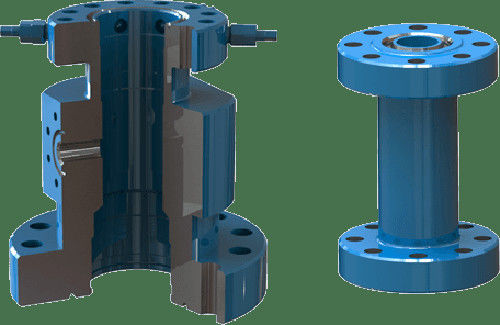

Casing Spool uses a straight bore based on the same reliable design as the C-22 except the bowl is 2 inches deeper, permiting the acceptance of the minimal-deflection C-29 Casing Hanger. This allows extreme-load casing-hanging capacity compared with the C-22 profile. C-29 Casing Spools normally are furnished with studded outlets, and threaded outlets are available upon request. Bottom preparation can include PE seal or X-bushing secondary seals. HPE seals for high-performance frac wells are available upon request.
Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
Main Advantages of Our Casing/Tubing Drilling Spool
Main Parameters of Casing/Tubing Drilling Spool
| Drill Spool Model | JD-FS18-35 | JD-FS18-70 | JD-FS18-105 | JD-FS28-35 | JD-FS28-70 | JD-FS28-105 |
| Nominal Diameter (mm) | Φ185 | Φ185 | 180 | 280 | Φ280 | 280 |
| Working Pressure (MPa) | 35 | 70 | 105 | 35 | 70 | 105 |
| Intensive Pressure (MPa) | 70 | 105 | 105 | 70 | 105 | 105 |
| By-pass Diameter(mm) | Φ103 | Φ103/Φ78 | Φ103/Φ78 | Φ103 | Φ103/Φ78 | Φ103/Φ78 |
| Top and Bottom Connection Flange | API, 6B 1835 R46 | API 6BX 1870 BX156 | API 6BX 18-105 BX156 | API, 6B 1835 R46 | API 6BX18-105 BX156 | API 6BX18-105 BX156 |
| Side Connection Flange | API, 6B 103-35 R39 | API 6BX 103-70 BX155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | API, 6B 103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX103-105 ×155 (Φ103) |
| Sealing Time (S) | / | API 6BX 7870 BX154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | API 6BX 78-105 ×154 (Φ78) | API 6BX78-105 ×154 (Φ78) |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
680×395 ×584 |
830×480×600 | 880×505×700 |
950×585 ×650 |
950×655×650 | 1,050×812×800 |
| Weight (kg) | 620 | 600 | 900 | 850 | 800 | 1,800 |
| Drill Spool Model | JD-FS35-21 | JD-FS35-35 | JD-FS35-70 | JD-FS35-105 | JD-FS53-21 | JD-FS54-14 |
| Nominal Diameter (mm) | Φ346 | Φ346 | Φ346 | Φ346 | Φ530 | Φ540 |
| Working Pressure (MPa) | 21 | 35 | 70 | 105 | 21 | 14 |
| Intensive Pressure (MPa) | / | 70 | 105 | 105 | / | / |
| By-pass Diameter(mm) | / | Φ103 |
Φ103 Φ78 |
Φ103 Φ78 |
/ | / |
| Top and Bottom Connection Flange | / | API, 6B1835 R46 | API 6BX 18-105 BX156 | API 6BX 18-105 BX156 | / | / |
| Side Connection Flange | / | API, 6B103-35 R39 | API 6BX 103-105 ×155 (Φ103) | API 6BX 103-105 ×155 (Φ103) | / | / |
| Sealing Time (S) | / | / | API 6BX 78-105 ×154 (Φ78) | API 6BX 78-105 ×154 (Φ78) | / | / |
| Applicable Temperature (ºC) | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 | -29~+121 |
|
Overall Dimension (L ×W ×H) (mm) |
950×610 ×600 |
1,100×672 ×650 |
1,100×768 ×650 |
1,390×880 ×1,000 |
1,250×812 ×800 |
1,250×812 ×800 |
| Weight (kg) | 1,050 | 1,100 | 1,280 | 2,100 | / | / |
Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. specializes on the manufacturing all sizes and pressure ratings used for oilfield applications. So many equipments have been applied on many oilfields all over the world. We can also design customizable ideal unions for reliable and consistent performance on their production system.
