API 6A Oilfield Wellhead Casing Tubing Drilling Spool

API 6A Oilfield Wellhead Casing Tubing Drilling Spool
API 6A Oilfield Wellhead Casing Tubing Drilling Spool API 6A Oilfield Wellhead Casing Tubing Drilling Spool API 6A Oilfield Wellhead Casing Tubing Drilling Spool

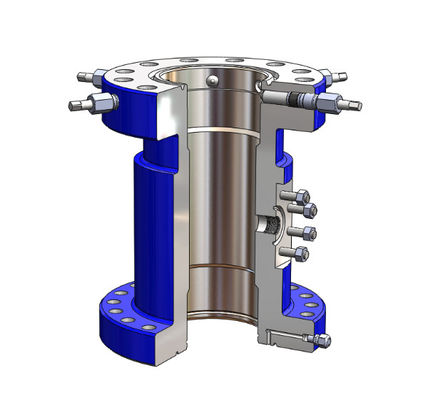

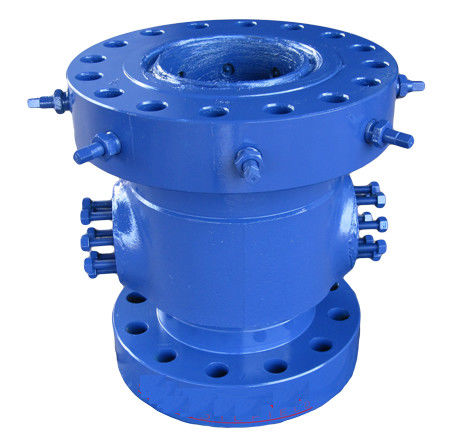

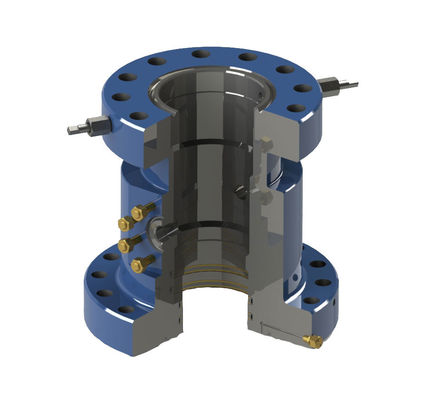

Large Image :  API 6A Oilfield Wellhead Casing Tubing Drilling Spool

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TRST

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Nominal Bore: 7 1/16"--29 1/2" Working Pressure: 2000 ~15000psi
Standard: API 6A Advantage: Short Delivery
Package: Wooden Case Material Level: AA、BB、CC、DD、EE、FF、HH
High Light:

Wellhead Casing Tubing Drilling Spool

,

Oilfield Tubing Drilling Spool

,

API 6A Spacer Spool

API 6A Oilfield Equipment Wellhead Casing / Tubing Drilling Spool



Product Overview



Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular membersSpacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members.


Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.



Features of Our Casing/Tubing Drilling Spool



• Flanged top and bottom connections available in sizes from 7-1/16" through nominal 20"
• Pressure ratings from 2,000 psi through 15,000 psi
• Accepts a full line of single completion tubing hangers
• Providing a loading shoulder which can support tubing hanger and sealing.
• Providing a sealing bore for hanger and packing.
• Providing secondary sealing for previous casing top.
• Providing a support and testing BOP after well completion.



Technical Specifications of Our Casing/Tubing Drilling Spool

Product Name
Drilling Spool
Working Pressure
2000 ~15000psi
Nominal Bore
7 1/16--29 1/2 or As per customer requirement
Working Medium
oil,natural gas,mud and gas containing H2S,CO2
Working Temperature
-46°C~121°C(Class LU)
Material Class
AA,BB,CC,DD,EE,FF,HH
Specification level
PSL1-4
Specifications
Length(mm)
3 1/8" X 5M To 3 1/8" X 5M
1092
4 1/16" X 5M To 4 1/16" X 5M
275
4 1/16" X 10M To 4 1/16" X 10M
1588
4 1/16" X 15M To 4 1/16" X 15M
614
5 1/8" X 5M To 5 1/8" X 5M
287
7 1/16" X 5M To 7 1/16" X 5M
700
9" X 5M To 9" X 5M
5200
11" X 5M To 11" X 5M
3048
13 5/8" X 3M To 13 5/8" X 3M
3048
13 5/8" X 5M To 13 5/8" X 5M
635
13 5/8" X 10M To 13 5/8" X 10M
650
21 1/4" X 2M To 21 1/4" X 2M
1400
26 3/4" X 3M To 26 3/4" X 3M
2440



API 6A Oilfield Wellhead Casing Tubing Drilling Spool 0
