FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill

FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill
FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill

Large Image :  FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 7-1, ISO 9001
Model Number: TRMA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Thread Type: FH REG NC IF
Standard: API 7-1 Processing Type: Forging
Advantage: Short Delivery Package: Wooden Case
High Light:

API 7-1 Oilfield Junk Mill

,

101.6mm Hole Oilfield Junk Mill

,

89mm OD Junk Mill

Durable Oilfield Junk Mill Watermelon Mill for Hole Size 95.2-101.6mm



Product Overview

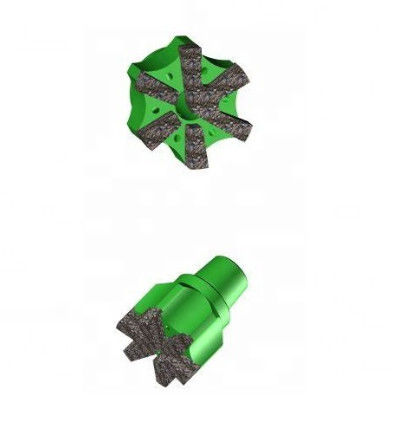

If you cannot fish it out or if you run into concrete and rebar, it is time for the Junk Mill. Mills Machine manufactures these rugged mills from 4142 heat treated steel and a composite matrix of large chunks of cutting grade or milling grade, crushed tungsten carbide rod 1 1/2″ to 2″ thick on the face.

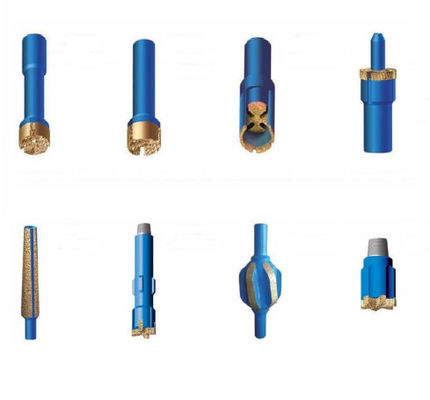

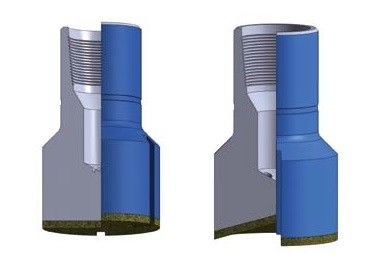

Mill shoe can be divided into three kinds: flat-bottom(concave- bottom)milling shoe, guidde shoe milling shoe and cone milling shoe,according to its structure and shape, at the milling surface,the carbide particles are built up by weilding, which plays a parts of self-milling. its used to mill the fallen substances,such as bolt,nut, tooth wheel, slip dog,fitttings fo deep-well pump. etc.


Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.



Technical Specifications of Our Milling Tool Junk Mill



Type OD (mm) Connection(Box) Hole size(mm)
MA89 89 2 3/8 REG 95.2-101.6
MA97 97 NC26 107.9-114.3
MA110 110 NC26 117.5-127.0
MA121 121 NC31 130.0-139.7
MA130 130 NC38 142.9-152.4
MA140 140 NC38 155.6-165.1
MA156 156 NC38 168.0-187.3
MA178 178 NC50 190.5-209.5
MA200 200 NC50 212.7-241.3
MA232 232 NC50 244.5-269.5
MA257 257 6 5/8 REG 273.1-295.3
MA279 279 6 5/8 REG 298.5-317.5
MA295 295 6 5/8 REG 320.6-346.1
MA330 330 6 5/8 REG 349.3-406.4
MA381 381 7 5/8 REG 406.4-444.5



FH REG 89mm OD 101.6mm Hole API 7-1 Oilfield Junk Mill 0



TR Solids Control with perfect attitude, product and service, is going to make further development together with customers at home and abroad.



We are a professional manufacturer and supplier of all kinds of oilfield tools in China. Our products range solid control equipment, OCTG, drilling equipments, well control equipments, downhole tools, etc. for use in all types of oil& gas drilling and well completion activities. With rigorous quality management system, ISO9001 and API certificate are held and products are exported to America, Middle East, Russia, Europe, etc. Good relations with many clients in the world has established. We are striving and aiming to be one of the most professional oilfield equipment suppliers in China. We sincerely welcome you to visit us and have a further cooperation.
