340mm Oilfield Drilling Fishing Concave Bottom Junk Mill

340mm Oilfield Drilling Fishing Concave Bottom Junk Mill
340mm Oilfield Drilling Fishing Concave Bottom Junk Mill 340mm Oilfield Drilling Fishing Concave Bottom Junk Mill 340mm Oilfield Drilling Fishing Concave Bottom Junk Mill

Large Image :  340mm Oilfield Drilling Fishing Concave Bottom Junk Mill

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 7-1, ISO
Model Number: TRMA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 70000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Warranty: 12 Months
Package: Wooden Case Hole Size: 155.6-165.1 Mm
Application: Energy & Mining Type: Concave Bottom
High Light:

Fishing Concave Bottom Junk Mill


Oilfield Concave Bottom Junk Mill


340mm Junk Mills

Fishing Tools Concave Bottom Junk Mill for Oilfield Drilling​


Product Descrption


Junk Mills are hard-faced with sintered tungsten carbide particles that mill away stuck fish that can not be retrieved with conventional fishing methods. These tools are highly resistant to impact and their super rates of penetration result in fewer round trips. Their maximum useful life is enhanced by their self-sharpening feature.


Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include: Petroleum equipment & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, download tools, well control equipments, cementing tools, and petrochemicals etc.

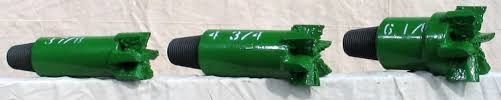

Main Type of Our Junk Mill


  • Concave Junk Mill: Concave Mill is designed for milling bit cones and other loose objects. It keeps the fish in a centralized fix location under the mill for greater milling effectiveness.
  • Flat Bottom Junk Mill : with more hardfacing for a longer tool life.Conventional Junk Mill : designed for cement, general junk, tubing milling or packer removal.
  • Super Junk Mill : designed for intensive use, such as drill collar milling. Its wide blades allow for maximum weight to be put on the mill.
  • Integral Bladed Junk Mill : this uncompromising mill is ideal for cement milling jobs, plug removal or general milling jobs.


Parameters of TR Fishing Tool Junk Mill


Type OD (mm) Connection(Box) Hole size(mm)
MA89 89 2 3/8 REG 95.2-101.6
MA97 97 NC26 107.9-114.3
MA110 110 NC26 117.5-127.0
MA121 121 NC31 130.0-139.7
MA130 130 NC38 142.9-152.4
MA140 140 NC38 155.6-165.1
MA156 156 NC38 168.0-187.3
MA178 178 NC50 190.5-209.5
MA200 200 NC50 212.7-241.3
MA232 232 NC50 244.5-269.5
MA257 257 6 5/8 REG 273.1-295.3
MA279 279 6 5/8 REG 298.5-317.5
MA295 295 6 5/8 REG 320.6-346.1
MA330 330 6 5/8 REG 349.3-406.4
MA381 381 7 5/8 REG 406.4-444.5


340mm Oilfield Drilling Fishing Concave Bottom Junk Mill 0


Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.


Packing & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
