Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill

Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill
Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill

Large Image :  Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 7-1
Model Number: TRMA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Warranty: 12 Months
Material: High Manganese Steel Package: Wooden Case
Standard: API Hole Size: 155.6-165.1 Mm
High Light:

OD 140mm Fishing Junk Mill

,

Oilfield Rig Fishing Junk Mill

,

Manganese Steel Junk Mill

OD 140mm Fishing Milling Tools Junk Mill for Oilfield Rig



Product Descrption



Junk Mills are hard-faced with sintered tungsten carbide particles that mill away stuck fish that can not be retrieved with conventional fishing methods. These tools are highly resistant to impact and their super rates of penetration result in fewer round trips. Their maximum useful life is enhanced by their self-sharpening feature.


All our mills feature integral AISI4145H body and can be used in both cased and open hole. They are available in a variety of standard and custom sizes, with or without stabilizing blades.

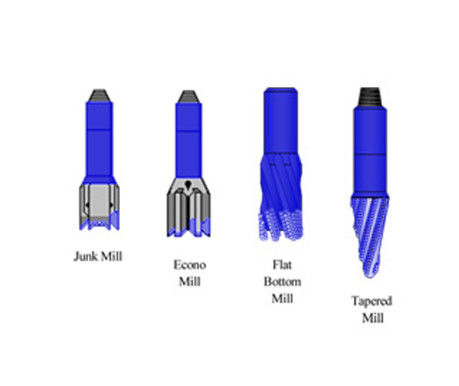

Main Type of Junk Mill



  • Flat Bottom Junk Mill : with more hardfacing for a longer tool life.Conventional Junk Mill : designed for cement, general junk, tubing milling or packer removal.
  • Conebuster Junk Mill : its concave shape is ideal for milling bit cones and other objects by keeping them centered under the mill.
  • Integral Bladed Junk Mill : this uncompromising mill is ideal for cement milling jobs, plug removal or general milling jobs.



Main Parameters of TR Fishing Tool Junk Mill



Type OD (mm) Connection(Box) Hole size(mm)
MA89 89 2 3/8 REG 95.2-101.6
MA97 97 NC26 107.9-114.3
MA110 110 NC26 117.5-127.0
MA121 121 NC31 130.0-139.7
MA130 130 NC38 142.9-152.4
MA140 140 NC38 155.6-165.1
MA156 156 NC38 168.0-187.3
MA178 178 NC50 190.5-209.5
MA200 200 NC50 212.7-241.3
MA232 232 NC50 244.5-269.5
MA257 257 6 5/8 REG 273.1-295.3
MA279 279 6 5/8 REG 298.5-317.5
MA295 295 6 5/8 REG 320.6-346.1
MA330 330 6 5/8 REG 349.3-406.4
MA381 381 7 5/8 REG 406.4-444.5



Manganese Steel Oilfield Rig OD 140mm Fishing Junk Mill 0



Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
