Product Details:
Payment & Shipping Terms:
|
| Size: | 89-340mm | Processing Type: | Forging |
|---|---|---|---|
| Connection: | NC, REG | Application: | Oilfield Drilling |
| Advantage: | Durable | Warranty: | 12 Months |
| Highlight: | Downhole Fishing Pilot Mill,API Fishing Pilot Mill,REG Pilot Mill |
||
Oil Well Downhole Tool Fishing Pilot Mill With API Certificate
Product Descrption
Mill shoe can be divided into three kninds; flat-bottom(concave- bottom)milling shoe, guidde shoe milling shoe and cone milling shoe,according to its structure and shape, at the milling surface,the carbide particles are built up by weilding, which plays a parts of self-milling. its used to mill the fallen substances,such as bolt,nut, tooth wheel, slip dog,fitttings fo deep-well pump. etc.

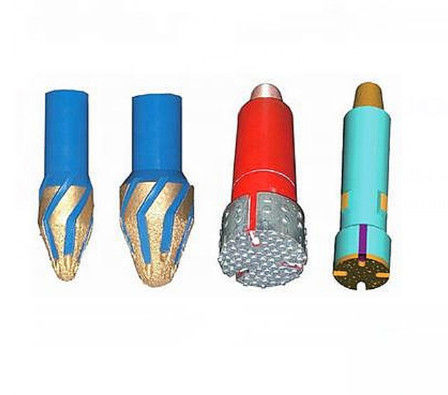

Main Types of TR Junk Mill
Flat Bottom Junk Mill : with more hardfacing for a longer tool life.
Conebuster Junk Mill : its concave shape is ideal for milling bit cones and other objects by keeping them centered under the mill.
Integral Bladed Junk Mill : this uncompromising mill is ideal for cement milling jobs, plug removal or general milling jobs. Tool integrity is ensured by integral blades machined out of the body, which can be fitted with TOPMILL cutting inserts for improved ROP.
Super Junk Mill : designed for intensive use, such as drill collar milling. Its wide blades allow for maximum weight to be put on the mill.
Technical Parameters of Our Milling Tool Junk Mill
| Type | OD (mm) | Connection(Box) | Hole size(mm) |
| MA89 | 89 | 2 3/8 REG | 95.2-101.6 |
| MA97 | 97 | NC26 | 107.9-114.3 |
| MA110 | 110 | NC26 | 117.5-127.0 |
| MA121 | 121 | NC31 | 130.0-139.7 |
| MA130 | 130 | NC38 | 142.9-152.4 |
| MA140 | 140 | NC38 | 155.6-165.1 |
| MA156 | 156 | NC38 | 168.0-187.3 |
| MA178 | 178 | NC50 | 190.5-209.5 |
| MA200 | 200 | NC50 | 212.7-241.3 |
| MA232 | 232 | NC50 | 244.5-269.5 |
| MA257 | 257 | 6 5/8 REG | 273.1-295.3 |
| MA279 | 279 | 6 5/8 REG | 298.5-317.5 |
| MA295 | 295 | 6 5/8 REG | 320.6-346.1 |
| MA330 | 330 | 6 5/8 REG | 349.3-406.4 |
| MA381 | 381 | 7 5/8 REG | 406.4-444.5 |
TR Solids Control mainly engages in offering oil drilling and production equipment and providing oilfield technical service. Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!
Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include: Petroleum equipment & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, download tools, well control equipments, cementing tools, and petrochemicals etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Contact Person: Ms. Sunny Lee
Tel: +86 13186019379
Fax: 86-29-8633-2919
