Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill

Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill
Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill

Large Image :  Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRMA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Certification: API 7-1
Warranty: 12 Months Material: High Manganese Steel
Package: Wooden Case Brand: TR
High Light:

Downhole Flat Bottom Junk Mill

,

Oilfield Flat Bottom Junk Mill

,

340mm Drill Spare Parts

High Forging Flat Bottom Junk Mill for Oilfield Downhole



Product Descrption



If you cannot fish it out or if you run into concrete and rebar, it is time for the Junk Mill. Mills Machine manufactures these rugged mills from 4142 heat treated steel and a composite matrix of large chunks of cutting grade or milling grade, crushed tungsten carbide rod 1 1/2″ to 2″ thick on the face.



With this mill you can eliminate anything in your way – rock, drill pipe, casing, tool joints, reamers, and rock bits.

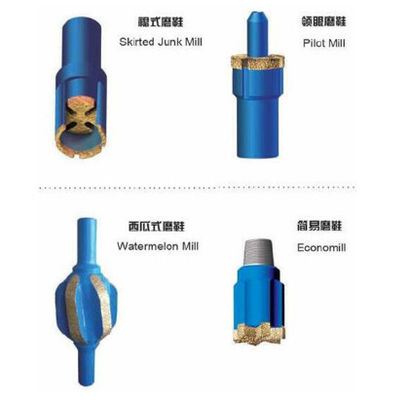

Main Type



Conventional Junk Mill : designed for cement, general junk, tubing milling or packer removal.

Flat Bottom Junk Mill : with more hardfacing for a longer tool life.

Conebuster Junk Mill : its concave shape is ideal for milling bit cones and other objects by keeping them centered under the mill.

Integral Bladed Junk Mill : this uncompromising mill is ideal for cement milling jobs, plug removal or general milling jobs. Tool integrity is ensured by integral blades machined out of the body, which can be fitted with TOPMILL cutting inserts for improved ROP.



Technical Parameters of TR Fishing Tool Junk Mill



Type OD (mm) Connection(Box) Hole size(mm)
MA89 89 2 3/8 REG 95.2-101.6
MA97 97 NC26 107.9-114.3
MA110 110 NC26 117.5-127.0
MA121 121 NC31 130.0-139.7
MA130 130 NC38 142.9-152.4
MA140 140 NC38 155.6-165.1
MA156 156 NC38 168.0-187.3
MA178 178 NC50 190.5-209.5
MA200 200 NC50 212.7-241.3
MA232 232 NC50 244.5-269.5
MA257 257 6 5/8 REG 273.1-295.3
MA279 279 6 5/8 REG 298.5-317.5
MA295 295 6 5/8 REG 320.6-346.1
MA330 330 6 5/8 REG 349.3-406.4
MA381 381 7 5/8 REG 406.4-444.5



Forging API 7-1 Oilfield Downhole Flat Bottom Junk Mill 0
