Product Details:
Payment & Shipping Terms:
|
| Certification: | API 7-1 | Size: | 89-340mm |
|---|---|---|---|
| Usage: | Downhole Drilling | Warranty: | One Year |
| Connection: | NC, REG | Material: | 4130 |
| High Light: | Downhole Flat Bottom Junk Mill,4130 Flat Bottom Junk Mill,89mm NC Junk Mill |
||
Material 4130 Downhole Milling Tool Flat Bottom Junk Mill
Product Descrption

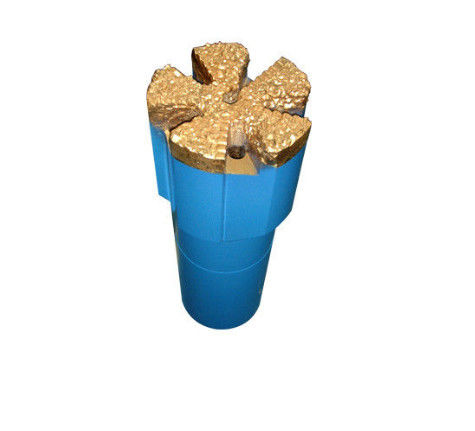

Junk Mills are hard-faced with sintered tungsten carbide particles that mill away stuck fish that can not be retrieved with conventional fishing methods. These tools are highly resistant to impact and their super rates of penetration result in fewer round trips. Their maximum useful life is enhanced by their self-sharpening feature.

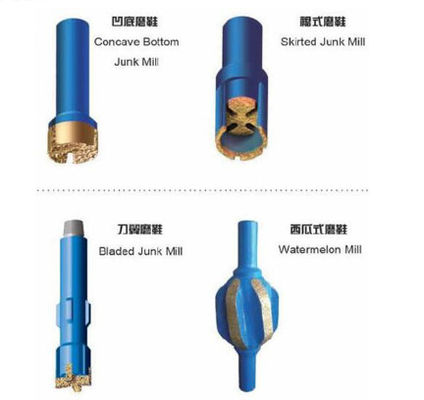

Tapered Mills
The Tapered Mill is designed for milling through various types of downhole obstructions. and reaming out liners and whipstock windows. It works well in collapsed casing as well as tight spots.
Flat Bottom Junk Mill
The Flat Bottom Junk Mill is the most commonly used milling tool. It is designed to mill a wide variety of junk such as squeeze tools, packers, tubing,bridge plugs and similar objects.
All our mills feature integral AISI4145H body and can be used in both cased and open hole. They are available in a variety of standard and custom sizes, with or without stabilizing blades.
Please download the information sheet for more details & standard sizes.
Technical Information of TR Milling Tool Junk Mill
| Type | OD (mm) | Connection(Box) | Hole size(mm) |
| MA89 | 89 | 2 3/8 REG | 95.2-101.6 |
| MA97 | 97 | NC26 | 107.9-114.3 |
| MA110 | 110 | NC26 | 117.5-127.0 |
| MA121 | 121 | NC31 | 130.0-139.7 |
| MA130 | 130 | NC38 | 142.9-152.4 |
| MA140 | 140 | NC38 | 155.6-165.1 |
| MA156 | 156 | NC38 | 168.0-187.3 |
| MA178 | 178 | NC50 | 190.5-209.5 |
| MA200 | 200 | NC50 | 212.7-241.3 |
| MA232 | 232 | NC50 | 244.5-269.5 |
| MA257 | 257 | 6 5/8 REG | 273.1-295.3 |
| MA279 | 279 | 6 5/8 REG | 298.5-317.5 |
| MA295 | 295 | 6 5/8 REG | 320.6-346.1 |
| MA330 | 330 | 6 5/8 REG | 349.3-406.4 |
| MA381 | 381 | 7 5/8 REG | 406.4-444.5 |
TR Solids Control is a professional supplier of various oilfield equipment, including solid control equipment, oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Moreover, we have established a complete quality control system, all products & equipments are manufatured as per international standard and API standard.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
