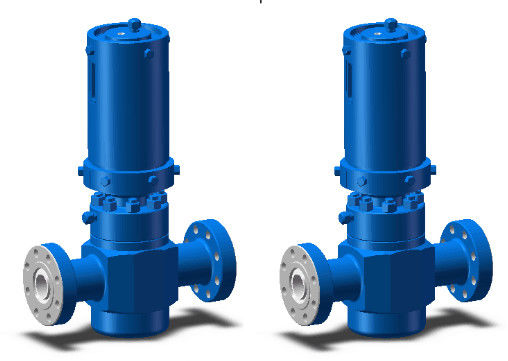

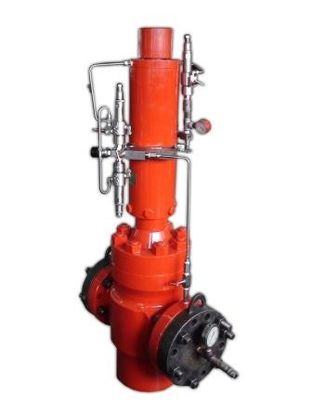

Forged 15000psi Oilfield Drilling Surface Safety Valve

Forged 15000psi Oilfield Drilling Surface Safety Valve
Forged 15000psi Oilfield Drilling Surface Safety Valve Forged 15000psi Oilfield Drilling Surface Safety Valve Forged 15000psi Oilfield Drilling Surface Safety Valve

Large Image :  Forged 15000psi Oilfield Drilling Surface Safety Valve

Product Details:

Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-AQF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Temperature: Ordinary Temperature
Connection: Flange Operated Pressure: 2000psi-15000psi
Performance Level: PR1, PR2 Package: Export Package
High Light:

Oilfield Drilling Surface Safety Valve

,

15000psi Surface Safety Valve

,

Forged Oilfield Safety Valve

Full Tested Forged Surface Safety Valve for Oilfield Drilling



Product Overview



Surface safety valve (SSV) is a hydraulically actuated failsafe gate valve for producing or testing oil and gas wells with high flow rates, high pressures, or the presence of H2S. The SSV is used to quickly shut down the well upstream in the event of overpressure, failure, a leak in downstream equipment, or any other well emergency requiring an immediate shut down.



Safety valve shuts down the emergency of wellhead equipment under the remote control,which provides security protection for the wellhead in a special case.



Advantages of Wellhead Surface Safety Valve



  • High-performance Super Memory Alloy Spring.
  • Modular Quick Installation and Removal.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
  • Unique stroke calibration institutions, can make actuator apply to gate valves of any manufacturer, including gate valves with different specifications also can be used for the same model of actuator, guarantee the actuator stroke match with the valve stroke.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.



Technical Info. of TR Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



Forged 15000psi Oilfield Drilling Surface Safety Valve 0



TR Solids Control is a professional manufacturer and supplier of all kinds of oilfield tools in China. Our products range solid control equipment, OCTG, drilling equipments, well control equipments, downhole tools, etc. for use in all types of oil& gas drilling and well completion activities. With rigorous quality management system, ISO9001 and API certificate are held and products are exported to America, Middle East, Russia, Europe, etc. Good relations with many clients in the world has established. We are striving and aiming to be one of the most professional oilfield equipment suppliers in China. We sincerely welcome you to visit us and have a further cooperation.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
