Product Details:
Payment & Shipping Terms:
|
| Nominal Bore: | 1 13/16"~7 1/16" | Working Pressure: | 2000psi-15000psi |
|---|---|---|---|
| Standard: | API 6A | Specification Level: | PSL1-4 |
| Warranty: | One Year | Usage: | Oilfield Wellhead |
| High Light: | Surface Safety Wellhead Gate Valve,Pneumatic Wellhead Gate Valve,API 6A Oilfield Wellhead Valve |
||

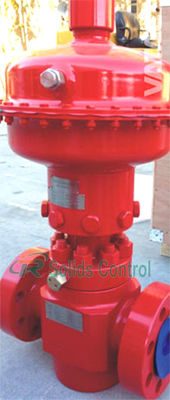

API 6A Pneumatic Surface Safety Gate Valve on Wellhead
Product Introduction

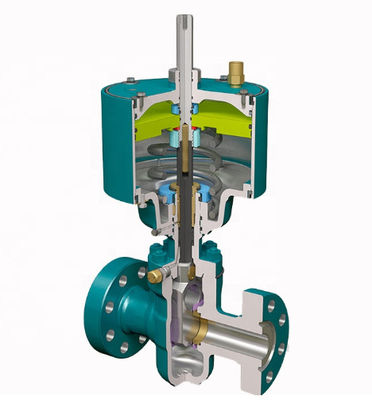

High pressure oil enter into the empty cavity of upper operator, and compress the spring of lower operator to open the valve, when the wellhead equipments suffer from dangerous pressure, control system relief the pressure of cylinder after receiving the signal sent by sensor, spring push stem to close valve and wellhead equipments, ensure the equipment safety.
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a company that manufactures different oilfield solid control and down hole tools and accessories such as shale shaker, mud cleaner, decanter centrifuge, tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.
Structure Features of Pneumatic Surface Safety Valve
• When oil & gas is leaking or firing, used for security protect on well site.
• Have hydraulic safety valve and pneumatic safety valve per different driving source.
• With heat sensitive and high pressure explosion-proof equipment.
• Have two parts of actuator and preparation valve, can replace and repair standard interface.
Technical Data of TR Wellhead Surface Safety Valve
| Material Class | AA,BB,CC,DD,EE,FF,HH. 0.5, NL. |
|---|---|
| Valve Class | PSL1~PSL3G. |
| Valve Size | 1 13/16"~7 1/16". |
| Valve Pressure | 2000PSI~20000PSI. |
| Temp Range | K,L,N,P,S,T,U,V,X,Y. |
| Connecting Format | Flange |
| Working Temperature | High Temperature |
| Applicable Medium | Oil, Other |
| Type | Right-angle Type |
| Flow Direction | Bi-directional |
| Application | Adjust |
| Driving Mode | Hydraulic Control |
| Sealing Form | Flexible Seal |
| Material | Stainless Steel |
| Body Structure | Unclosed |
| Mpa | High Pressure |
Why choose us Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.?
1. Own factories in China mainland.
2. Engaged in the industry for over 10 years.
3. Achieve patents for intellectual property protection.
4. QUALITY SESTEM to make sure the superior high quality.
5. Large product series for one-stop service.
6. Consulting, suggesting, help find perfect solution.
Now our products are not only widely used in big oil field and other domestic markets, but also exported to Central Asia, Middle East, South-east Asia, North America, South America and other countries in the world. If you have any new inquiry, welcome to contact with us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
