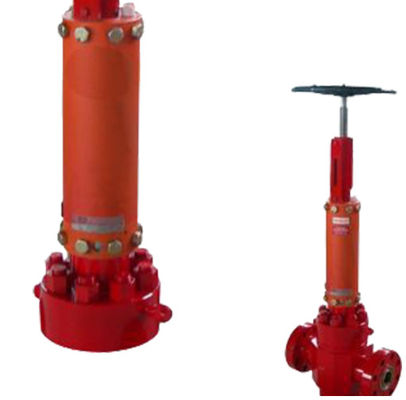

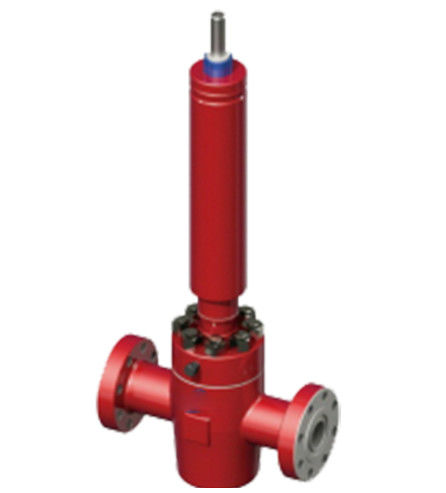

Unclosed Wellhead API 6A 15000psi Surface Safety SSV Valve

Wellhead API 6A Surface Safety Valve High Pressure SSV

Product Overview

A valve which is opened when power is supplied, and automatically is closed when the power is lost or released.

Single piston design, to reduce flux of fluid in order to close the valve in time;. The spring components are in the housing and can be replaced easily;Non-rubber stem seals, with good resistance to high pressure, high temperature and "corrosion;Adopting a back-seal structure, the stem seals can be replaced without need to dischargepressure;. The space between gate and seat is sealed by metal, with good resistance to abrasion and corrosion, and with long service life.

Working Pressure:2,000psi-15,000psi
Working Temperature:L U,PU

Structural Features of Our Surface Safety Valve

• Easy disassembling and maintaining.
• Inlet and outlet connections: API 6A flange or hammer union.
• High-performance Super Memory Alloy Spring.
• Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
• Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
• Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
• Double metal-to-metal seals for reliability in harsh environments.
• Modular Quick Installation and Removal.

Technical Data of Wellhead Surface Safety Valve
