1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. The Derrick replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve

1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve
1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve 1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve 1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve

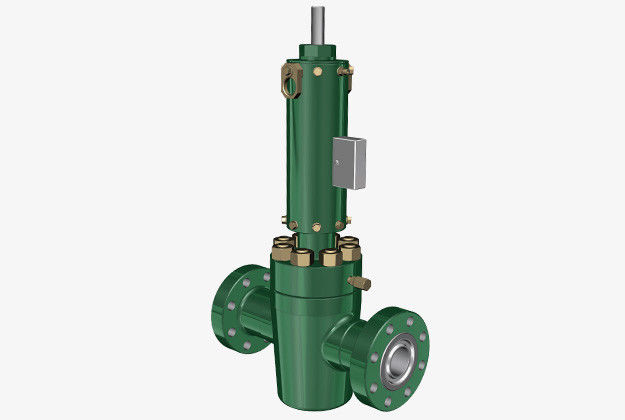

Large Image :  1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Working Pressure: 2000psi-15000psi
Standard: API 6A Specification Level: PSL1-4
Package: Wooden Case Media: Oil/water/H2S
High Light:

Hydraulic Scssv Safety Valve

,

API 6A Scssv Safety Valve

,

PSL1-4 Surface Safety Valve

API 6A High Pressure Hydraulic Type Surface Safety Valve



Product Descrption



Surface safety valve (SSV) is a pneumatically or hydraulically actuated fail-safe gate valve for producing or testing oil and gas wells with high flow rates, high pressures, or the presence of H2S. The SSV is used to quickly shut down the well upstream in the event of overpressure, failure,blockage,a leak in downstream equipment, or any other well emergency requiring an immediate shut down.



The relief valve is an important component of wellhead production. When high pressure enters the drive, the bottom spring will open the valve. Through console operation, the spring on the relief valve will automatically push the stem to close the valve, thus ensuring safety on the production.assembled safety valve with consideration of optimal safety and economic. The available safety valve sizes from 1-13/16" through to 7-1/16",of pressure rating from 2000psi to 20000psi.



Structure Features of Wellhead Surface Safety Valve



  • Easy disassembling and maintaining.
  • Bore Size: all popular.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.



Parameters of TR Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



1/2" NPT PSL1-4 API 6A Hydraulic Scssv Safety Valve 0



Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. has obtained the ISO9001 Quality System Certification and Certificate of Authority to Use the Official API Monogram issued by the American Petroleum Institute since 2000. It has also passed the annual review to date tiger rig has been dedicated to the design and manufacturing of oilfield equipment. High levels of expertise have been attained in the fields of forging, heat treatment and mechanical processing.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
