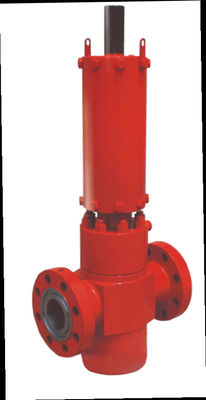

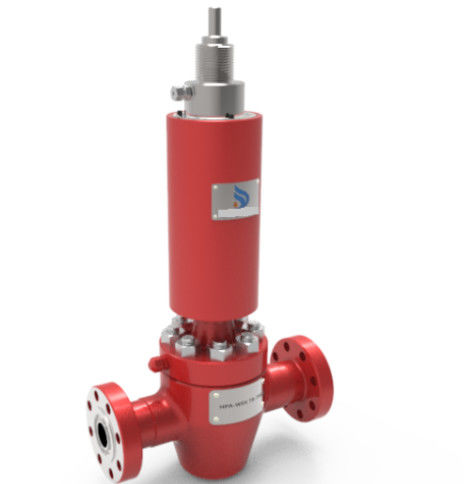

PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve

PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve
PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve

Large Image :  PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Specification Level: PSL1-4
Connection: Flange Type: Semi-Closed
Operated Pressure: 2000psi-15000psi Performance Level: PR1, PR2
High Light:

API 6A Hydraulic Wellhead Valve

,

15000psi Hydraulic Wellhead Valve

,

1/2" NPT Surface Safety Valve

API 6A Hydraulic Operated Safety Valve for Wellhead



Product Overview



Surface safety valve is installed in the upper wellbore to provide emergency closure of the producing conduits in the event of an emergency. Two types of subsurface safety valve are available: surface-controlled and subsurface controlled. In each case, the safety-valve system is designed to be fail-safe, so that the wellbore is isolated in the event of any system failure or damage to the surface production-control facilities.



A number of SSV models are available for different well conditions (pressures, temperatures, and flow rates) and with various connections, such as hammer union or API-6A flanges.



Main Benefits of Wellhead Surface Safety Valve



  • High-performance Super Memory Alloy Spring.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
  • Unique stroke calibration institutions, can make actuator apply to gate valves of any manufacturer, including gate valves with different specifications also can be used for the same model of actuator, guarantee the actuator stroke match with the valve stroke.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Modular Quick Installation and Removal.



Technical Specifications of Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



PR1 PR2 1/2" NPT 15000psi API 6A Hydraulic Wellhead Valve 0



Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. has strict systems of scientific research and quality assurance. It has a research & development technology center, a modern product line and maintenance service for oilfield drilling tools, and facilities together with advanced techniques of physical and chemical analysis as well as ultrasonic flaw detection. For materials. Moreover, it is one of the druggeting companies of the industry standard, for eight types of down-hole tools.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
