Corrosion Resistance Wellhead SSV Surface Safety Valve

Corrosion Resistance Wellhead SSV Surface Safety Valve
Corrosion Resistance Wellhead SSV Surface Safety Valve Corrosion Resistance Wellhead SSV Surface Safety Valve Corrosion Resistance Wellhead SSV Surface Safety Valve

Large Image :  Corrosion Resistance Wellhead SSV Surface Safety Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Specification Level: PSL1-4
Temperature: Ordinary Temperature Connection: Flange
Type: Semi-Closed Operated Pressure: 2000psi-15000psi
Pressure: High Pressure Performance Level: PR1, PR2
High Light:

SSV Surface Safety Valve

,

Wellhead Surface Safety Valve

,

Corrosion Resistance Wellhead Valve

Corrosion Resistance Surface Safety Valve SSV for Wellhead



Product Overview

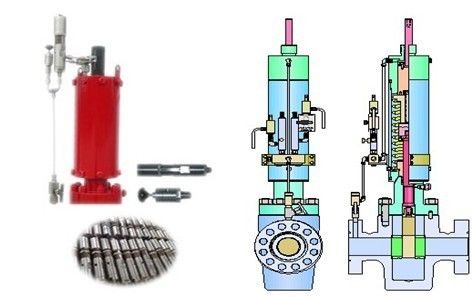

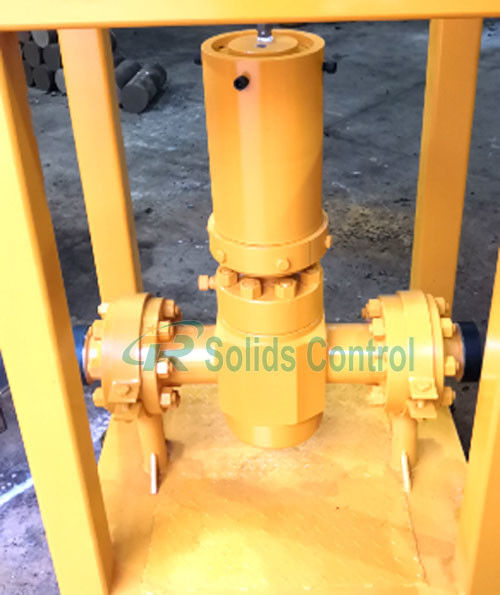

Surface safety valve is remotely operated by an emergency shutdown device (ESD), which can be triggered automatically by high or low pressure pilot actuators. If an emergency occurs, this feature reduces the possibility of personnel injuries. A number of SSV models are available for different well conditions (pressures, temperatures, and flow rates) and with various connections, such as hammer union or API-6A flanges. We provide hydraulic actuator and slab gate valve,assembled safety valve with consideration of optimal safety and economic. The available safety valve sizes from 1-13/16" through to 7-1/16",of pressure rating from 2000psi to 15000psi.



Main Advantages of Wellhead Surface Safety Valve



  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
  • High-performance Super Memory Alloy Spring.
  • Unique stroke calibration institutions, can make actuator apply to gate valves of any manufacturer, including gate valves with different specifications also can be used for the same model of actuator, guarantee the actuator stroke match with the valve stroke.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Modular Quick Installation and Removal.



Technical Info. of Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



Corrosion Resistance Wellhead SSV Surface Safety Valve 0
