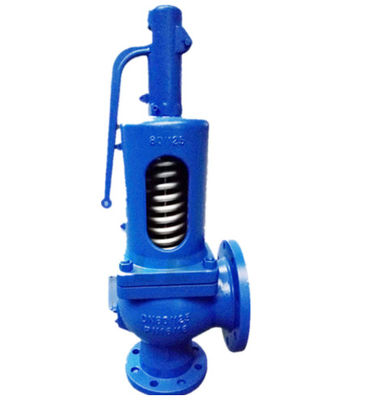

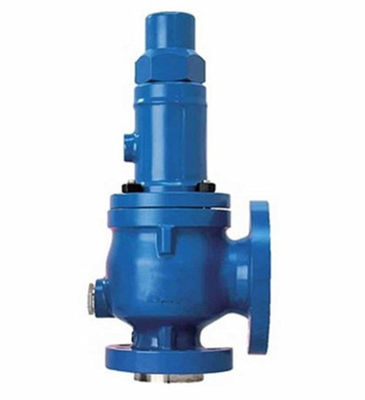

5000PSI HPA SV Type Hydraulic Wellhead Safety Valve

5000PSI HPA SV Type Hydraulic Wellhead Safety Valve
5000PSI HPA SV Type Hydraulic Wellhead Safety Valve 5000PSI HPA SV Type Hydraulic Wellhead Safety Valve 5000PSI HPA SV Type Hydraulic Wellhead Safety Valve

Large Image :  5000PSI HPA SV Type Hydraulic Wellhead Safety Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A. ISO
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Working Pressure: 2000psi-15000psi
Specification Level: PSL1-4 Warranty: One Year
Usage: Oilfield Wellhead Temperature: Ordinary Temperature
Connection: Flange Type: Semi-Closed
High Light:

Hydraulic Wellhead Safety Valve

,

SV Type Wellhead Safety Valve

,

5000PSI Hydraulic Wellhead Valve

5000PSI HPA SV Type Hydraulic Wellhead Safety Valve



Product Overview



Surface safety valve (SSV) is a hydraulically actuated fail-safe gate valvefor producing or testing oil and gas wells with high flow rates, high pressures, or the presence of H2S. The SSV is used to quickly shut down the well upstream in the event of overpressure, failure, a leak in downstream equipment, or any other well emergency requiring an immediate shut down.

SSV is remotely operated by an emergency shutdown device (ESD), which can be triggered automatically by high or low pressure pilot actuators. If an emergency occurs, this feature reduces the possibility of personnel injuries.



Main Characterstics of Wellhead Surface Safety Valve



  • High-performance Super Memory Alloy Spring.
  • Actuator Over-pressure Protection.
  • Modular Quick Installation and Removal.
  • Unique stroke calibration institutions, can make actuator apply to gate valves of any manufacturer, including gate valves with different specifications also can be used for the same model of actuator, guarantee the actuator stroke match with the valve stroke.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.



Technical Specifications of Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure
