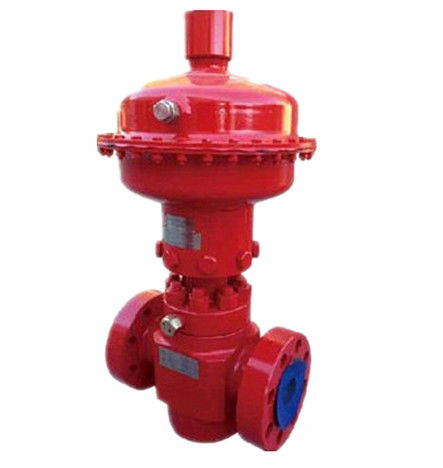

API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve

API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve
API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve

Large Image :  API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 40000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Working Pressure: 2000psi-15000psi
Standard: API 6A Specification Level: PSL1-4
Warranty: One Year Usage: Oilfield Wellhead
High Light:

Pneumatic Wellhead Safety Valve

,

SSV Wellhead Safety Valve

,

Oil Drilling Surface Safety Valve

Oil Drilling Wellhead SSV Pneumatic Surface Safety Valve



Product Introduction



The high pressure safety valve is forged by high quality structural alloy steel. As a kind of protection device and human safety device, it is generally installed on cementing devices, fracturing pump, high pressure operation piping, pressure vessel and devices under high pressure and high flow capacity. It controls elastic force of the valve seat by adjusting the nut on the top. Once the pumping pressure or piping pressure exceeds pre-established pressure value, safety valve opens automatically to release the pressure. When the pressure value reaches the normal value, valve rod will recover the position by spring and close the valve.

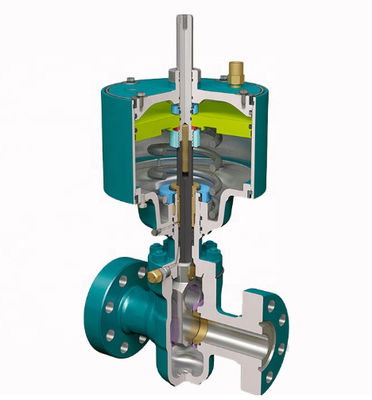

Structure Features of Wellhead Surface Safety Valve



  • Bore Size: all popular.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.
  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.



Technical Data of TR Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



API 6A Oil Drilling SSV Pneumatic Wellhead Safety Valve 0



Product Application


1) High pressure oil / gas wells production.
2)Testing oil and gas wells with high flow rates, high wellhead pressures, or the presence of H2S.
3)Wells with hazard operational analysis showing a surface pressure barrier is needed in addition to the primary or master valve.



Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. main products include: shale shaker, mud agitator, drilling jar, fishing jar, shock sub, fishing tools, stabilizer, roller reamer, drill collars, drill pipes, tool joints and service equipment for surface drilling tools. Our products have been exported to America, South America, Saudi, Germany, Iran , Kazakhstan, India, Pakistan, Middle East, South Africa, Egypt and Columbia etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
