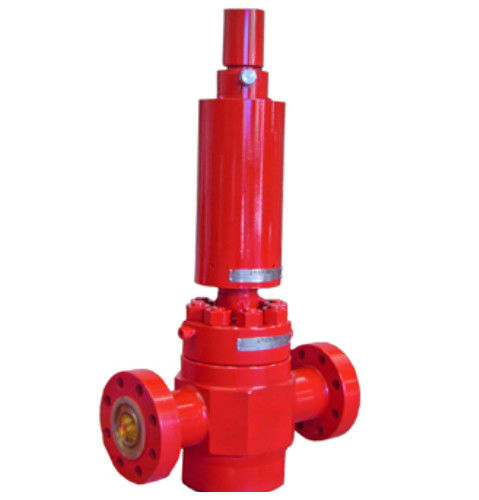

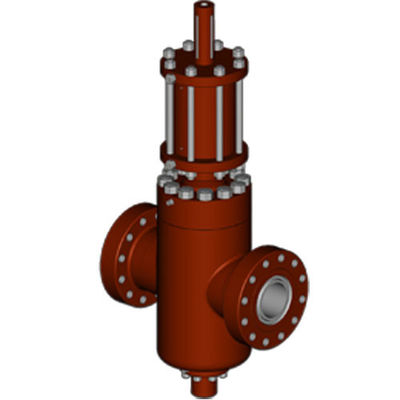

PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve

PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve
PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve

Large Image :  PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TR-AQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Nominal Bore: 1 13/16"~7 1/16" Working Pressure: 2000psi-15000psi
Working Temperature: -29°C~121°C(Class PU) Standard: API 6A
Material Class: AA,BB,CC,DD,EE,FF,HH Specification Level: PSL1-4
High Light:

Hydraulic Surface Safety Valve

,

API 6A Surface Safety Valve

,

Wellhead SSV Valve

API 6A Hydraulic Surface Safety Valve for Wellhead



Product Introduction



Surface safety valve (SSV) is a pneumatically or hydraulically actuated fail-safe gate valve for producing or testing oil and gas wells with high flow rates, high pressures, or the presence of H2S. The SSV is used to quickly shut down the well upstream in the event of overpressure, failure,blockage,a leak in downstream equipment, or any other well emergency requiring an immediate shut down.



To ensure safety, the drilling pump is equipped with safety valve in the outlet, which is able to control the ultimate pressure of the pump within the admitted scope.



The application of safety relief valves:


1) High pressure oil / gas wells production.
2)Testing oil and gas wells with high flow rates, high wellhead pressures, or the presence of H2S.
3)Wells with hazard operational analysis showing a surface pressure barrier is needed in addition to the primary or master valve.



Structure Features of Wellhead Surface Safety Valve



  • Fail-safe remote activation and automatic well closure when loss of control pressure occurs.
  • Double metal-to-metal seals for reliability in harsh environments.
  • Bore Size: all popular.
  • Hydraulic actuator: 3,000 psi working pressure and 1/2" NPT.
  • Inlet and outlet connections: API 6A flange or hammer union.
  • Compliance with API-6A (PSL-3 , PR1), NACE MR0175.



Key Parameters of TR Wellhead Surface Safety Valve



Material Class AA,BB,CC,DD,EE,FF,HH. 0.5, NL.
Valve Class PSL1~PSL3G.
Valve Size 1 13/16"~7 1/16".
Valve Pressure 2000PSI~20000PSI.
Temp Range K,L,N,P,S,T,U,V,X,Y.
Connecting Format Flange
Working Temperature High Temperature
Applicable Medium Oil, Other
Type Right-angle Type
Flow Direction Bi-directional
Application Adjust
Driving Mode Hydraulic Control
Sealing Form Flexible Seal
Material Stainless Steel
Body Structure Unclosed
Mpa High Pressure



PSL1-4 Wellhead API 6A Hydraulic Surface Safety Valve 0



TR Solids Control is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
