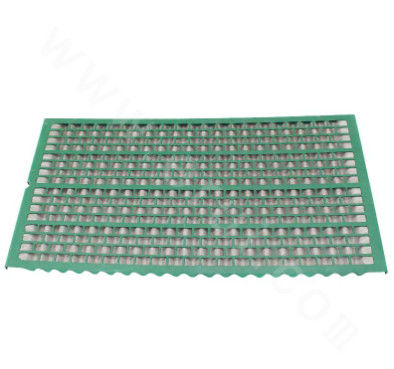

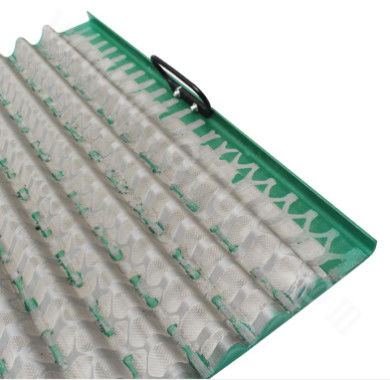

SS304 API 325 Wave Type HYP Shale Shaker Screen

SS304 API 325 Wave Type HYP Shale Shaker Screen
SS304 API 325 Wave Type HYP Shale Shaker Screen SS304 API 325 Wave Type HYP Shale Shaker Screen SS304 API 325 Wave Type HYP Shale Shaker Screen

Large Image :  SS304 API 325 Wave Type HYP Shale Shaker Screen

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API RP 13 C
Model Number: TRHYP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton box and wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30000pcs/month
Detailed Product Description
Dimension: 1070x 570x 22 Mm Mesh: API 20-API 325
Weight: 9 Kg Material: S.S 304/316/316 L.
Color: Green
High Light:

Shale Shaker Screen


API 325 Shale Shaker Screen


Wave Type Shaker Screen

HYP Wave Type Shaker Screen API & ISO Certificates
Product Overview
HYP Shaker Screen is designed for the high capacity 4-panel shale shakers. Installed with screens, the non-blanked screening area has increased 20% than conventional flat screens. All replacement shaker screens for shale shakers are all compliant with API RP 13C (ISO 13501), the new industry standard for physical testing and labeling of shaker screens. Shale shaker screens fit HYP series shaker| screen ()|API 20~API 200.
After-Sales Service
On-site installation with technological guidance,regular equipment inspection,and training.
We have marketing teams in regions where key accounts located,also we prepare special stock area in the local warehouses for key accounts.to timely provide necessary parts and consumable products.
Problem solving & Complaints settlement.
Competitive Advantges

  • API RP 13C (ISO 13501) compliant.
  • Warranty Period: 1 year.
  • Stainless steel 304/316 wire mesh for longevity.
  • Increase shaker capacity and reduce muds loss.
  • Non-blanked screening area increased by more than 20%.
  • Scientific & reasonable cost control system for competitive price.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Working Life: 400–450 hours.

Specifications of Replacement HYP Shaker Screen

Screen DesignationMesh TypeAPI RP 13C DesignationConductance NumberD100 Separation (microns)

Layer No.


Non-blank area (sq.ft)
DH-A325DXAPI 3250.39442/35.66
DH-A270DXAPI 2700.67572/35.66
DH-A230DXAPI 2300.71682/35.66
DH-A200DXAPI 2001.32732/35.66
DH-A170DXAPI 1701.34832/35.66
DH-A140DXAPI 1401.891012/35.66
DH-A120DXAPI 1201.891342/35.66
DH-A100DXAPI 1002.661642/35.66
DH-A80DXAPI 802.761932/35.66
DH-A70DXAPI 703.332032/35.66
DH-A60DXAPI 604.12682/35.66
DH-A50DXAPI 505.172852/35.66
DH-A40DXAPI 408.644392/35.66
DH-A35DXAPI 359.695382/35.66
DH-A20DXAPI 2010.888092/35.66

* D100: Particles this size and larger will normally be discarded.
* API: Corresponding API sieve equivalent as per API RP 13C.
* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

SS304 API 325 Wave Type HYP Shale Shaker Screen 0

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. strives for existence by quality, for development by reputation. We have high-quality products, competitive price, solid reputation and reliable after-sale services. On the basis of mutually beneficial and friendly cooperation, we really hope to establish good business relationship and create a better future with the old and the new customers at home and abroad.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
