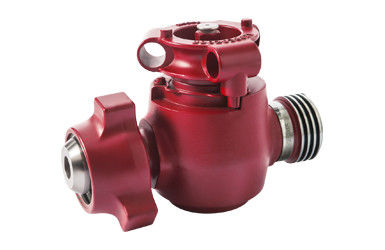

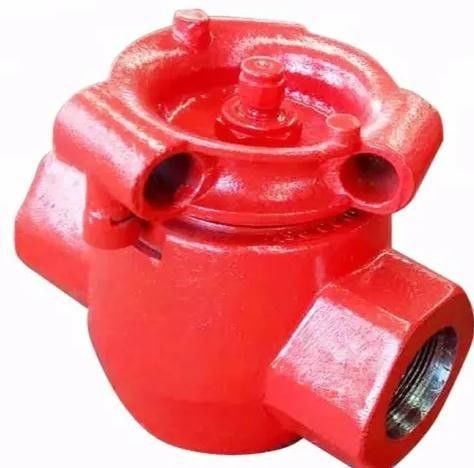

Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve

Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve
Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve

Large Image :  Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TR-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 40000pcs per month
Detailed Product Description
Port Size: 1"-4" End Connection: FIG 1502(F*M)/FIG 2202(F*M)
Material: Alloy, Stainless Steel Standard: API 6A
Working Pressure: -46°C -121°C Surface Treatment: Sand Blast
Media: Oil Power: Manual
High Light:

10000psi Manual Plug Valve

,

API 6A Manual Plug Valve

,

SPM Drill Spare Parts

API 6A FMC / SPM 10000psi Plug Valve with Fig1502 Hammer Union



Product Introduction



Plug valve is an important part to connect the high pressure manifold during cementing and fracturing operations, and is also suitable for the control of other high pressure fluids. Plug valve is mainly composed of valve body, sealing arc slice , plug and other parts.



Plug valve manufactured by our company has a specification level of pls1-3 and a performance level of pr1-2, which can be interchanged with similar products of SPM and widely used in cementing equipment and fracturing equipment.



Structure Features of Our Wellhead Plug Valve



  • Dual seals: Dual seals in the inner and outer grooves ensures sealing capacities even in severe service conditions.
  • Excellent abrasion and corrosion resistance: Plugs are made from premium alloy steel, with special coating and heat treating process which greatly improves sealing capacities, abrasion and corrosion resistance
  • Interchangeable design: replacing plate and plug cap with handwheel operator can meet different service applications.
  • Fast assembly, high strength: integral plugs are designed a more compact valve and ensier maintenance.
  • Improved seals: Special design of seal segments with standard O-ring improves sealing capacities and extends service life
  • Special side segment design: Metal side segments will improve pressure containning capacity in limited space.
  • Highly corrosive resistance: Seal rings are made from sepcial materials with impoved corrision resistance.
  • Pressure containing parts:valve bodies are forged to meet NACE MRO0175 requirements for sour service.
  • Dual seals: in the inner and outer grooves are made from HNBR which is soue gas resistant and low temperature resistant material. The anti-extrusion metal ring added to the inner ting extends service life.



Key Parameters of TR Wellhead Plug Valve



Nom.
Size
End
Connection
CWP
psi(bar)
P/N Weight
lb (kg)
Operator
/Actuator
Dimension(in.) Service
A B C D
1" x 1" FIG 1502 (FxM) 15,000
(l,034)
3902075913 41(18.6) Manual 7.43 2.4 2.74 10.59 Standard
1" x 1" FIG 1502 (FxM) 15,000
(1,034)
3902076390 76(34.5) Hydraulic 15.83 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(l,034)
3900000567 56(25.3) Manual 7.9 2.4 3.76 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076300 87(39.4) Hydraulic 16.3 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076982 99(44.8) Hydraulic 19.55 1.75 3.76 10.59 Standard
&Manual
1"x 2" FIG 1502 (FxM) 10,000
(690)
3902075601 51(23.1) Manual 8.11 1.75 3.76 10.57 Sour
1"x 2" FIG2002(FxM) 20,000
(1,379)
3902075469 66(29.9) Manual 7.06 2.4 3.74 13.02 Standard
1(1/2" x
1(1/2"
FIG 1502 (FxM) 15,000
(1,034)
3902075945 103(46.8) Manual 8.28 2.63 3.58 13.88 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3900000037 105(47.6) Manual 8.93 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076298 160(72.4) Hydraulic 19.31 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076983 156(70.6) Hydraulic 21.34 3.44 3.76 13.9 Standard
&Manual
2"x 2" FIG 1502 (FxM) 10,000
(690)
3902075275 96(43.5) Manual 8.48 2.69 3.76 13.9 Sour
2"x 2" FIG2002(FxM) 20,000
(1,379)
3900000508 114(51.7) Manual 9.09 3.44 3.74 15.2 Standard
2"x 2" FIG2202(FxM) 15,000
(1,034)
3902075602 104(47.1) Manual 8.03 2.68 3.74 15.26 Sour
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3902064227 236(107) Manual 12.8 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3900000034 313(142) Handwheel 24.54 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 10,000
(690)
3902075603 254(115) Manual 14.48 5 4.44 15.69 Sour
3"x 3" FIG2002(FxM) 20,000
(1,379)
3900000391 613(278) Manual 19.65 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902076022 683(310) Handwheel 32.69 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902075865 745(338) Hydraulic 29.13 6.66 5.93 22.13 Standard
3"x 3" FIG2202(FxM) 15,000
(1,034)
3902076111 683(310) Handwheel 32.69 6.66 5.93 22.13 Sour
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902065696 701(318) Manual 21.3 7.28 5.93 22.84 Standard
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902076569 717(325) Handwheel 26.88 7.28 5.93 22.84 Standard



Sand Blast API 6A FMC / SPM 10000psi Manual Plug Valve 0



TR Solids Control is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
