| Working Pressure: | 6,000 Psi To 20,000Psi | Power: | Hydraulic/ Manual/handwheel |
|---|---|---|---|
| End Connection: | FIG 1502(F*M)/FIG 2202(F*M) | Material: | Alloy |
| Operation Pressure: | Atmospheric Pressure | Port Size: | 1"-4" |
| High Light: | 1502 Flanged Plug Valves,API Flanged Plug Valves,Oilfield High Pressure Plug Valve |
||

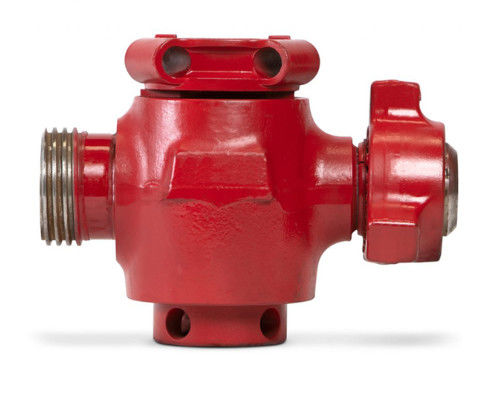

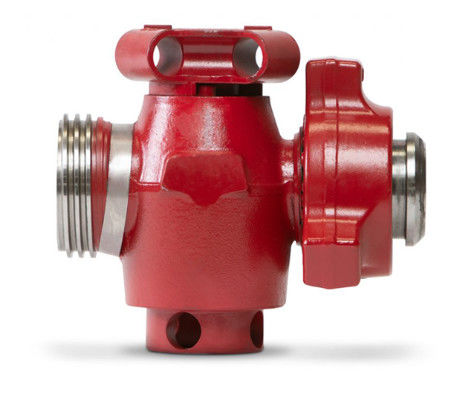

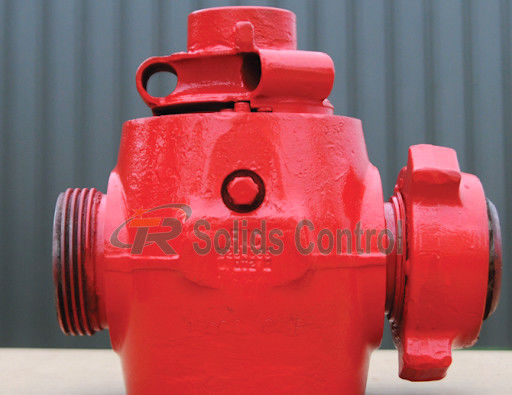

API Standard FMC 1" 1502 Flanged Plug Valves for Wellhead
Product Overview
Plug valves are quick-acting, on-off valves that can also be used for media with suspended particulates, as the wiper seals move between wipers and fully prevent contact with the flow media when fully open. Another important feature is its ease of adaptation to multichannel structures, so that one valve can get two, three, or even four different flow paths. This simplifies the design of the piping system, reducing the amount of valves and some of the connections needed in the equipment.
These Plug Valves are designed to meet the needs and requirements of the oilfield. They can withstand the high erosion rates and pressures encountered in today's operating environment.
Features of TR Wellhead Plug Valve
Key Parameters of Wellhead Plug Valve
| Nom. Size |
End Connection |
CWP psi(bar) |
P/N | Weight lb (kg) |
Operator /Actuator |
Dimension(in.) | Service | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| 1" x 1" | FIG 1502 (FxM) | 15,000 (l,034) |
3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (l,034) |
3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual | ||||||||||
| 1"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
| 1(1/2" x 1(1/2" |
FIG 1502 (FxM) | 15,000 (1,034) |
3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual | ||||||||||
| 2"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000 (1,034) |
3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000 (690) |
3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000 (1,034) |
3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
