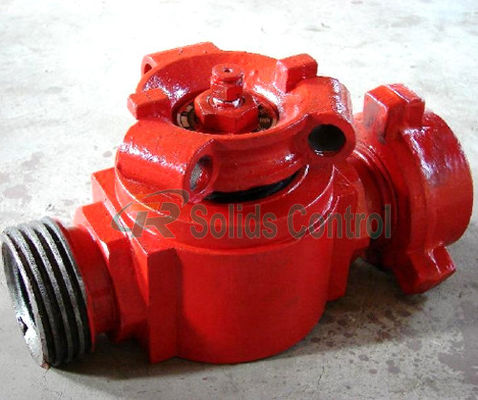

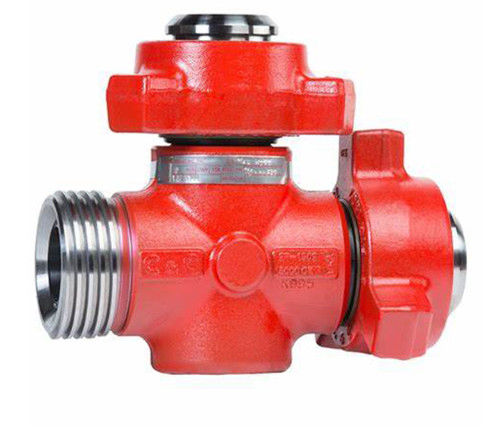

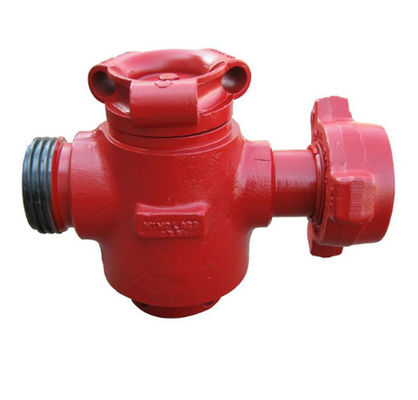

Corrosion Resistance Oilfield Wellhead 1502 Plug Valve

Corrosion Resistance Oilfield Wellhead 1502 Plug Valve
Corrosion Resistance Oilfield Wellhead 1502 Plug Valve Corrosion Resistance Oilfield Wellhead 1502 Plug Valve Corrosion Resistance Oilfield Wellhead 1502 Plug Valve

Large Image :  Corrosion Resistance Oilfield Wellhead 1502 Plug Valve

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TR-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Working Pressure: 6,000 Psi To 20,000Psi Power: Hydraulic/ Manual/handwheel
End Connection: FIG 1502(F*M)/FIG 2202(F*M) Certificate: API 6A
Warranty: 1 Year Port Size: 1", 2", 3", 4"
High Light:

Wellhead 1502 Plug Valve

,

Oilfield 1502 Plug Valve

,

Corrosion Resistance Drill Rig Parts

Drill Rig Parts Oilfield Wellhead Fig 3" 1502 Plug Valve​



Product Descrption



Plug valve is especially suitable to separate,connect and shunt the medium .Because of the wiping function between Plug valve sealing faces, it can avoid contacts with flowing medium when it is totally opened ,thus it can be also used for medium with suspended particle, We hace 1'' ,2'' and 3'' Plug valve,which was adopted unions to connect and it can be connected to products of the similar category arbitrarily.Its maintenance package can interchange with the similar category products of American FMC and SPM.



Main Characterstics of TR Wellhead Plug Valve



  • Excellent abrasion and corrosion resistance: Plugs are made from premium alloy steel, with special coating and heat treating process which greatly improves sealing capacities, abrasion and corrosion resistance
  • Interchangeable design: replacing plate and plug cap with handwheel operator can meet different service applications.
  • Fast assembly, high strength: integral plugs are designed a more compact valve and ensier maintenance.
  • Improved seals: Special design of seal segments with standard O-ring improves sealing capacities and extends service life
  • Special side segment design: Metal side segments will improve pressure containning capacity in limited space.
  • Highly corrosive resistance: Seal rings are made from sepcial materials with impoved corrision resistance.
  • Pressure containing parts:valve bodies are forged to meet NACE MRO0175 requirements for sour service.
  • 14.Dual seals: in the inner and outer grooves are made from HNBR which is soue gas resistant and low temperature resistant material. The anti-extrusion metal ring added to the inner ting extends service life.



Key Specification of TR Wellhead Plug Valve



Nom.
Size
End
Connection
CWP
psi(bar)
P/N Weight
lb (kg)
Operator
/Actuator
Dimension(in.) Service
A B C D
1" x 1" FIG 1502 (FxM) 15,000
(l,034)
3902075913 41(18.6) Manual 7.43 2.4 2.74 10.59 Standard
1" x 1" FIG 1502 (FxM) 15,000
(1,034)
3902076390 76(34.5) Hydraulic 15.83 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(l,034)
3900000567 56(25.3) Manual 7.9 2.4 3.76 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076300 87(39.4) Hydraulic 16.3 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076982 99(44.8) Hydraulic 19.55 1.75 3.76 10.59 Standard
&Manual
1"x 2" FIG 1502 (FxM) 10,000
(690)
3902075601 51(23.1) Manual 8.11 1.75 3.76 10.57 Sour
1"x 2" FIG2002(FxM) 20,000
(1,379)
3902075469 66(29.9) Manual 7.06 2.4 3.74 13.02 Standard
1(1/2" x
1(1/2"
FIG 1502 (FxM) 15,000
(1,034)
3902075945 103(46.8) Manual 8.28 2.63 3.58 13.88 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3900000037 105(47.6) Manual 8.93 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076298 160(72.4) Hydraulic 19.31 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076983 156(70.6) Hydraulic 21.34 3.44 3.76 13.9 Standard
&Manual
2"x 2" FIG 1502 (FxM) 10,000
(690)
3902075275 96(43.5) Manual 8.48 2.69 3.76 13.9 Sour
2"x 2" FIG2002(FxM) 20,000
(1,379)
3900000508 114(51.7) Manual 9.09 3.44 3.74 15.2 Standard
2"x 2" FIG2202(FxM) 15,000
(1,034)
3902075602 104(47.1) Manual 8.03 2.68 3.74 15.26 Sour
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3902064227 236(107) Manual 12.8 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3900000034 313(142) Handwheel 24.54 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 10,000
(690)
3902075603 254(115) Manual 14.48 5 4.44 15.69 Sour
3"x 3" FIG2002(FxM) 20,000
(1,379)
3900000391 613(278) Manual 19.65 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902076022 683(310) Handwheel 32.69 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902075865 745(338) Hydraulic 29.13 6.66 5.93 22.13 Standard
3"x 3" FIG2202(FxM) 15,000
(1,034)
3902076111 683(310) Handwheel 32.69 6.66 5.93 22.13 Sour
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902065696 701(318) Manual 21.3 7.28 5.93 22.84 Standard
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902076569 717(325) Handwheel 26.88 7.28 5.93 22.84 Standard



Corrosion Resistance Oilfield Wellhead 1502 Plug Valve 0



RFQ



1.How long is your delivery time?
It is according to the model and quality. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
