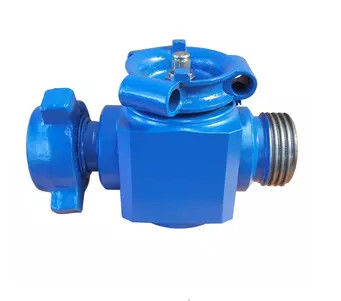

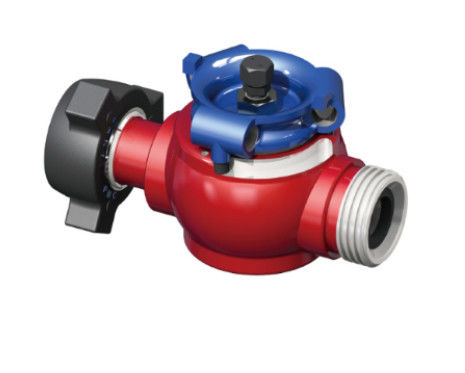

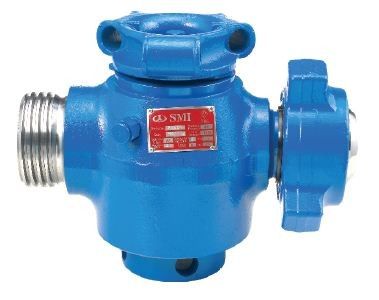

API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve

API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve
API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve

Large Image :  API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve

Product Details:
Place of Origin: Xi'an City, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TR-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Port Size: 1"-4" Media Temperature: High Temperature
Working Pressure: -46°C -121°C Material Class: AA-HH
Performance Class: PR1- PR2 Application: Well Drilling
Media: Oil Certificate: API 6A
High Light:

Wellhead Manifold Plug Valve

,

API 6A Manifold Plug Valve

,

Solids Control Wellhead Plug Valve

API 6A 2" FIG1502 Forged Manifold Plug Valve for Wellhead



Product Introduction



Plug Valve is a kind of closure member or plunger type rotating valve that can rotate 90 degrees to switch on the channel of lotorc valve and valve body to make them conected or switch it off to make them separated.Plug valve pioston can be shaped in cylindrical or cinical. These shap makes its structure light and also bring some loss at the same time.Plug valve is especially suitable to separate,connect and shunt the medium .Because of the wiping function between Plug valve sealing faces, it can avoid contacts with flowing medium when it is totally opened ,thus it can be also used for medium with suspended particle, We hace 1'' ,2'' and 3'' Plug valve,which was adopted unions to connect and it can be connected to products of the similar category arbitrarily.Its maintenance package can interchange with the similar category products of American FMC and SPM.



Product Usage


Plug valve is widely used in Oil field exploitation,transportation and refining equipment and also in Petroleum chemical industry,chemical industry,chemical industry ,coal gas ,natural gas,liquefied petroleum gas .iIt can be used under standard working conditions.



Main Benefits of TR Wellhead Plug Valve



  • Note: 10000 psi high-pressure, can also more relaxed on or off valve.Mainly by the valve body, hand wheel, plunger, and other component parts.
  • Import and export have adopted 1502 from the previous form of connectivity (also customized according to customer needs), the valve body and between the cylinder liner tile with tile and through lining embedded into seals Cylindrical Seal.
  • Contrast between the tile and plunger seal cylindrical metal complexes, characterized with high precision, sealed reliable.



Technical Information of TR Wellhead Plug Valve



Nom.
Size
End
Connection
CWP
psi(bar)
P/N Weight
lb (kg)
Operator
/Actuator
Dimension(in.) Service
A B C D
1" x 1" FIG 1502 (FxM) 15,000
(l,034)
3902075913 41(18.6) Manual 7.43 2.4 2.74 10.59 Standard
1" x 1" FIG 1502 (FxM) 15,000
(1,034)
3902076390 76(34.5) Hydraulic 15.83 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(l,034)
3900000567 56(25.3) Manual 7.9 2.4 3.76 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076300 87(39.4) Hydraulic 16.3 2.4 2.74 10.59 Standard
1"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076982 99(44.8) Hydraulic 19.55 1.75 3.76 10.59 Standard
&Manual
1"x 2" FIG 1502 (FxM) 10,000
(690)
3902075601 51(23.1) Manual 8.11 1.75 3.76 10.57 Sour
1"x 2" FIG2002(FxM) 20,000
(1,379)
3902075469 66(29.9) Manual 7.06 2.4 3.74 13.02 Standard
1(1/2" x
1(1/2"
FIG 1502 (FxM) 15,000
(1,034)
3902075945 103(46.8) Manual 8.28 2.63 3.58 13.88 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3900000037 105(47.6) Manual 8.93 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076298 160(72.4) Hydraulic 19.31 3.44 3.76 13.9 Standard
2"x 2" FIG 1502 (FxM) 15,000
(1,034)
3902076983 156(70.6) Hydraulic 21.34 3.44 3.76 13.9 Standard
&Manual
2"x 2" FIG 1502 (FxM) 10,000
(690)
3902075275 96(43.5) Manual 8.48 2.69 3.76 13.9 Sour
2"x 2" FIG2002(FxM) 20,000
(1,379)
3900000508 114(51.7) Manual 9.09 3.44 3.74 15.2 Standard
2"x 2" FIG2202(FxM) 15,000
(1,034)
3902075602 104(47.1) Manual 8.03 2.68 3.74 15.26 Sour
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3902064227 236(107) Manual 12.8 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 15,000
(1,034)
3900000034 313(142) Handwheel 24.54 4.96 4.44 17 Standard
3"x 3" FIG 1502 (FxM) 10,000
(690)
3902075603 254(115) Manual 14.48 5 4.44 15.69 Sour
3"x 3" FIG2002(FxM) 20,000
(1,379)
3900000391 613(278) Manual 19.65 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902076022 683(310) Handwheel 32.69 6.66 5.93 22.13 Standard
3"x 3" FIG2002(FxM) 20,000
(1,379)
3902075865 745(338) Hydraulic 29.13 6.66 5.93 22.13 Standard
3"x 3" FIG2202(FxM) 15,000
(1,034)
3902076111 683(310) Handwheel 32.69 6.66 5.93 22.13 Sour
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902065696 701(318) Manual 21.3 7.28 5.93 22.84 Standard
4"x 4" FIG1502(FxM) 15,000
(1,034)
3902076569 717(325) Handwheel 26.88 7.28 5.93 22.84 Standard



API 6A 2" FIG1502 Forged Wellhead Manifold Plug Valve 0



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
