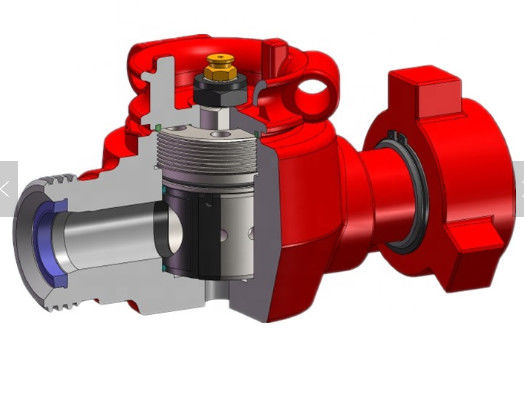

Oilfield Wellhead Flow Control Products High Pressure Plug Valve
Product Introduction
The plug valve produced by our company is designed for a wide range of standard and sour gas drilling production and well servicing appliancation with maximum pressure up to 15000psi. This kind valve features a compact structure, low torque,quick open/and close an easy operation. They are mostly applied on various oilfield manifold.
TR provides a customized design to meet each customer’s unique requirements.
Recommended service: Fracturing, cementing,acidizing and testing lines.
Operating Instructions
Fill the grease between the body and side segments with grease prior to use.
Perform hydrostatic tests prior to use to make sure that no leakage occurs.
Check whether the valve position is in match with the mark and rotate the plug cap 90 degree to see if the plug valve can be operated freely.
Main Advantages of Our Wellhead Plug Valve
Technical Parameters of TR Wellhead Plug Valve
| Nom. Size |
End Connection |
CWP psi(bar) |
P/N | Weight lb (kg) |
Operator /Actuator |
Dimension(in.) | Service | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| 1" x 1" | FIG 1502 (FxM) | 15,000 (l,034) |
3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (l,034) |
3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual | ||||||||||
| 1"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
| 1(1/2" x 1(1/2" |
FIG 1502 (FxM) | 15,000 (1,034) |
3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual | ||||||||||
| 2"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000 (1,034) |
3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000 (690) |
3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000 (1,034) |
3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging. Transportation is based on customers in different regions using steam, rail, road and air transportation.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
