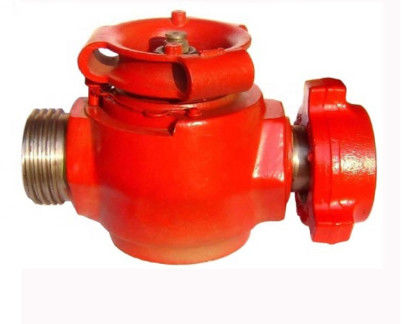

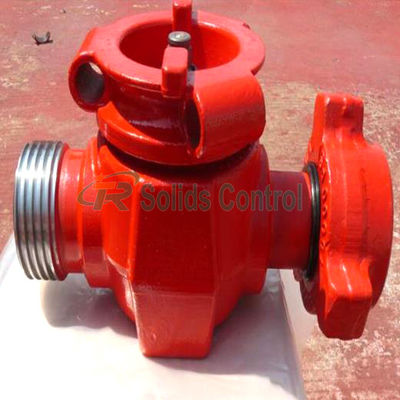

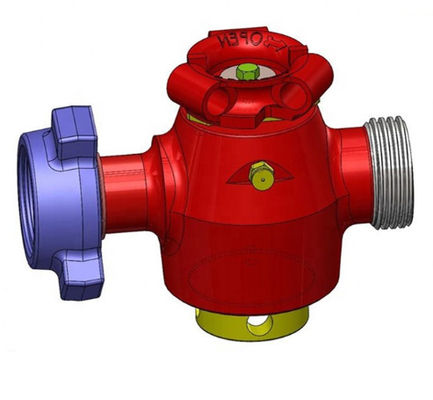

API 6A Wellhead Plug Valve / 2" Plug Valve with Fig 1502
Product Overview
Plug Valves are used to control flow opena and close. valve bodies are die-forged from premium alloy steel and heat treated to ensure the strength. plugs and seal segments are machined from heat treated alloy steel with special surface treatment to ensure reliable sealing capacity.
We has also developed plug valves for H2S service in accordance with NACE MR0175 criteria with 1 " to 4 " bore sizes and 10,000psi to 15,000psi rated pressure.
Working principle and structure characteristics
Mainly by the valve body, hand wheel, plunger, and other component parts.
Import and export have adopted 1502 from the previous form of connectivity (also customized according to customer needs), the valve body and between the cylinder liner tile with tile and through lining embedded into seals Cylindrical Seal.
Contrast between the tile and plunger seal cylindrical metal complexes, characterized with high precision, sealed reliable.
Note: 10000 psi high-pressure, can also more relaxed on or off valve.
Main Characterstics of Our Wellhead Plug Valve
Technical Specifications of TR Wellhead Plug Valve
| Nom. Size |
End Connection |
CWP psi(bar) |
P/N | Weight lb (kg) |
Operator /Actuator |
Dimension(in.) | Service | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| 1" x 1" | FIG 1502 (FxM) | 15,000 (l,034) |
3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (l,034) |
3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual | ||||||||||
| 1"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
| 1(1/2" x 1(1/2" |
FIG 1502 (FxM) | 15,000 (1,034) |
3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual | ||||||||||
| 2"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000 (1,034) |
3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000 (690) |
3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000 (1,034) |
3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
