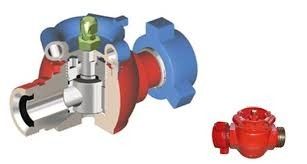

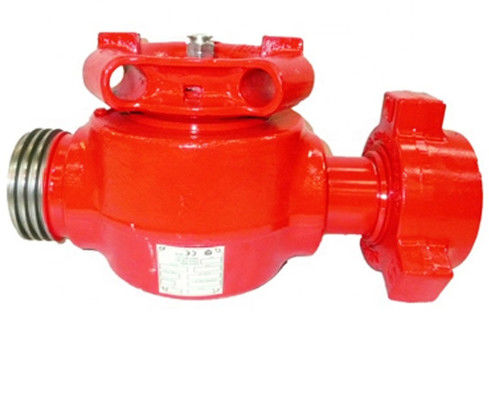

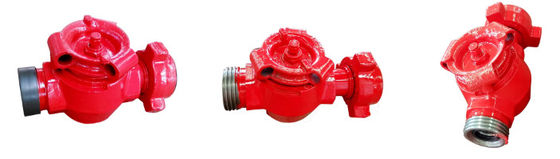

API 6A Wellhead Equipment Plug Valve for Well Drilling
Product Overview
High pressure low torque Plug Valves are available in 2" X 2" and 2" X 1". They come in multiple bores and are available up to 15,000 PSI for standard service and 10,000 PSI for H2S or sour gas service. Our plug valves are pressure balanced type and have replaceable metal liners between the body and plug. Repair kits are also available to increase their life and make them perform safely for longer. These manually operated valves are fitted with high stem torques and manual gearboxes.
Structure of Plug Valve Description
Plug valves are indispensiblefor connecting the high-pressure manifold during cementing and fracturing operations in oil fields. They are also used for similar high-pressure fluid control operations. Up to now,this product is ideal for use in cementing and fracturing manifoldsbecause of its good features such as compact structure,small torque ,easy maintenance,quick opening action and labor-saving,etc.
Features of TR Wellhead Plug Valve
1) The plug valve is mainly made up of the body,the hand wheel,the pluger and the others.
2) The 1502 union connection is applied to connect its inlet and outlet to he pipeline (this can be custom-made according to different requirements) .the precise fit between the valve body and the liner is insured by means of cylindrical fitting, and the sealant is inlaid through the outer cylindrical surface of the liner to make sure that it is hermitically sealed.
3) The cylindrical meal-to-meal fit between the liner and the pluger is adopted to insure a high fiiting accuracy and thereby reliable sealing performance.
4) Note:even under a pressure of 15000psi,the valve can be opened or closed with ease.
Technical Parameters of Wellhead Plug Valve
| Nom. Size |
End Connection |
CWP psi(bar) |
P/N | Weight lb (kg) |
Operator /Actuator |
Dimension(in.) | Service | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| 1" x 1" | FIG 1502 (FxM) | 15,000 (l,034) |
3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (l,034) |
3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual | ||||||||||
| 1"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
| 1(1/2" x 1(1/2" |
FIG 1502 (FxM) | 15,000 (1,034) |
3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual | ||||||||||
| 2"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000 (1,034) |
3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000 (690) |
3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000 (1,034) |
3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
