Product Details:
Payment & Shipping Terms:
|
| Size: | 1"to 4" | Working Pressure: | 6,000 Psi To 20,000Psi |
|---|---|---|---|
| Temperature Range: | -20 F To 250F / -50F To 250F | Power: | Hydraulic/ Manual/handwheel |
| End Connection: | FIG 1502(F*M)/FIG 2202(F*M) | Material: | Alloy |
| Certificate: | API 6A | Warranty: | 1 Year |
| High Light: | Wellhead High Pressure Plug Valve,Hydraulic High Pressure Plug Valve,API 6A Wellhead Plug Valve |
||

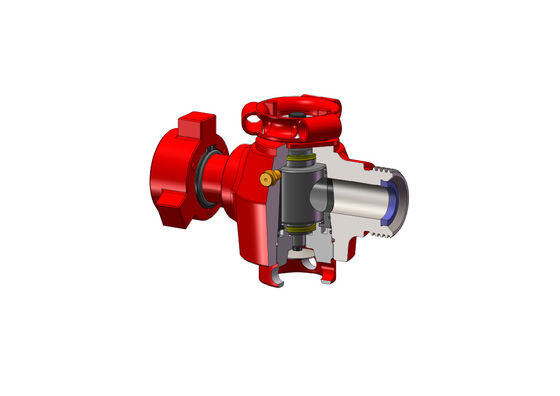

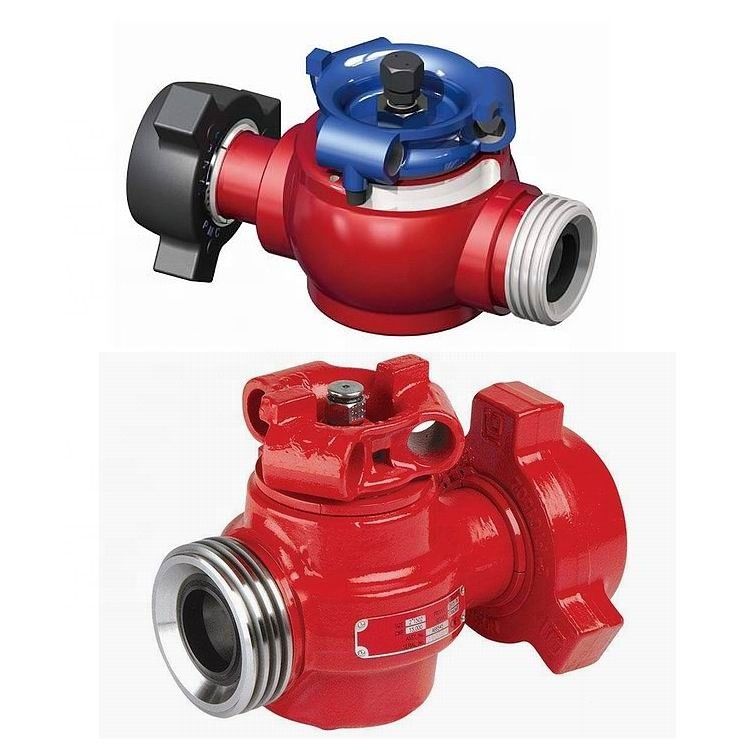

Wellhead High Pressure Plug Valve with Fig 1502 Union
Product Overview
The plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field and also suitable to control over the similar high pressure fluid. Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation, the plug valve is ideal for the cementing and fracturing manifolds.
Operating Instructions
Fill the grease between the body and side segments with grease prior to use.
Perform hydrostatic tests prior to use to make sure that no leakage occurs.
Check whether the valve position is in match with the mark and rotate the plug cap 90 degree to see if the plug valve can be operated freely.
Features of TR Wellhead Plug Valve
Technical Data of Wellhead Plug Valve
| Nom. Size |
End Connection |
CWP psi(bar) |
P/N | Weight lb (kg) |
Operator /Actuator |
Dimension(in.) | Service | |||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||||
| 1" x 1" | FIG 1502 (FxM) | 15,000 (l,034) |
3902075913 | 41(18.6) | Manual | 7.43 | 2.4 | 2.74 | 10.59 | Standard |
| 1" x 1" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076390 | 76(34.5) | Hydraulic | 15.83 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (l,034) |
3900000567 | 56(25.3) | Manual | 7.9 | 2.4 | 3.76 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076300 | 87(39.4) | Hydraulic | 16.3 | 2.4 | 2.74 | 10.59 | Standard |
| 1"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076982 | 99(44.8) | Hydraulic | 19.55 | 1.75 | 3.76 | 10.59 | Standard |
| &Manual | ||||||||||
| 1"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075601 | 51(23.1) | Manual | 8.11 | 1.75 | 3.76 | 10.57 | Sour |
| 1"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3902075469 | 66(29.9) | Manual | 7.06 | 2.4 | 3.74 | 13.02 | Standard |
| 1(1/2" x 1(1/2" |
FIG 1502 (FxM) | 15,000 (1,034) |
3902075945 | 103(46.8) | Manual | 8.28 | 2.63 | 3.58 | 13.88 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000037 | 105(47.6) | Manual | 8.93 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076298 | 160(72.4) | Hydraulic | 19.31 | 3.44 | 3.76 | 13.9 | Standard |
| 2"x 2" | FIG 1502 (FxM) | 15,000 (1,034) |
3902076983 | 156(70.6) | Hydraulic | 21.34 | 3.44 | 3.76 | 13.9 | Standard |
| &Manual | ||||||||||
| 2"x 2" | FIG 1502 (FxM) | 10,000 (690) |
3902075275 | 96(43.5) | Manual | 8.48 | 2.69 | 3.76 | 13.9 | Sour |
| 2"x 2" | FIG2002(FxM) | 20,000 (1,379) |
3900000508 | 114(51.7) | Manual | 9.09 | 3.44 | 3.74 | 15.2 | Standard |
| 2"x 2" | FIG2202(FxM) | 15,000 (1,034) |
3902075602 | 104(47.1) | Manual | 8.03 | 2.68 | 3.74 | 15.26 | Sour |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3902064227 | 236(107) | Manual | 12.8 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 15,000 (1,034) |
3900000034 | 313(142) | Handwheel | 24.54 | 4.96 | 4.44 | 17 | Standard |
| 3"x 3" | FIG 1502 (FxM) | 10,000 (690) |
3902075603 | 254(115) | Manual | 14.48 | 5 | 4.44 | 15.69 | Sour |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3900000391 | 613(278) | Manual | 19.65 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902076022 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2002(FxM) | 20,000 (1,379) |
3902075865 | 745(338) | Hydraulic | 29.13 | 6.66 | 5.93 | 22.13 | Standard |
| 3"x 3" | FIG2202(FxM) | 15,000 (1,034) |
3902076111 | 683(310) | Handwheel | 32.69 | 6.66 | 5.93 | 22.13 | Sour |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902065696 | 701(318) | Manual | 21.3 | 7.28 | 5.93 | 22.84 | Standard |
| 4"x 4" | FIG1502(FxM) | 15,000 (1,034) |
3902076569 | 717(325) | Handwheel | 26.88 | 7.28 | 5.93 | 22.84 | Standard |
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
