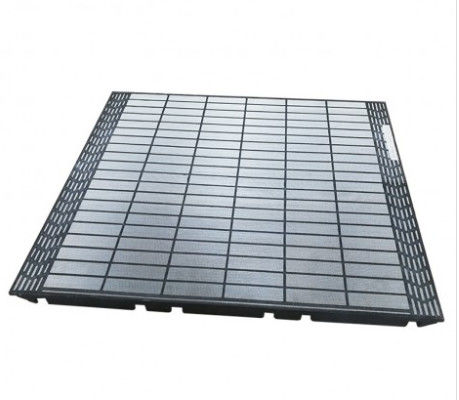

3 layers Stainless Steel API RC13 Shale Shaker Screen

API Shale Shaker Screen Used for MI-SWACO MD-3 / MD-2 Shaker

Product Introduction

Composite screen is similar with the hookstrip flat screen on the structure. Main feature as follow:

These products soft screen are constructed with two to four 304 stainless steel wire cloth layers combined compositely together, without steel backing plate, can get an effective filtering area. The bottom of the thick wire cloth, not only for the above screen cloth better filter, but also support it and save the screen lifetime.

Composite screens provide longer life and greater screen area. High-capacity composite screens provide a significant increase in fluid capacity as well as excellent resistance to blinding providing dryer solids discharge and a larger net usable screen area.

Technical Specification of Swaco MD-3 Shaker Screen

Advantages of TR Replacement Swaco MD-3 Shaker Screen:

1. Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
2. Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.
3. It forms a reliable whole, with high-strength steel frame, reinforced supports and moderate tension screening cloth, which greatly enhances the tolerate flow, strength and working life .Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing.
4. The surface is divided into more small parts. They can prevent excessive expansion of local damage. At the same time, we have the special rubber plug to repair the damage. It can save time and reduce the cost.

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. Was established in 2010 and located in Xi'an city, Shaanxi Province. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: Solid control equipment & mud system, Petroleum equipment & tools such as drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc. Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards. We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, we are pleased to inform you that we have working with many big companies throughout the world.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
