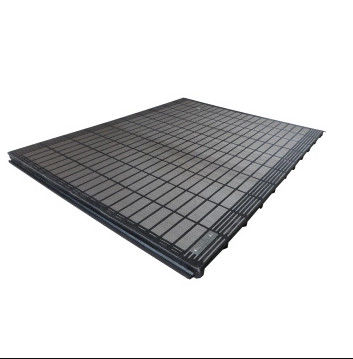

API RC13 SS316 Replacement Composite Vibrating Screen

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. The Derrick replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

API RC13 SS316 Replacement Composite Vibrating Screen

API RC13 SS316 Replacement Composite Vibrating Screen
API RC13 SS316 Replacement Composite Vibrating Screen
video play

Large Image :  API RC13 SS316 Replacement Composite Vibrating Screen

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRC-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton box and wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Dimension: 655 X 622 Mm Screen Material: S.S.316
Mesh: API 40-API 325 Layers: 2-3 Layers
Weight: 6.2 Kg Suitable Shale Shaker: MI-Swaco MD2 & MD3 Shaker
Package: Carton Box, Wooden Case Standard: API RC13
High Light:

Replacement Composite Vibrating Screen


SS316 Vibrating Screen


API RC13 Vibrating Screen

Replacement Composite Screen For MD-3 Shaker MI-Swaco Style


Product Introduction

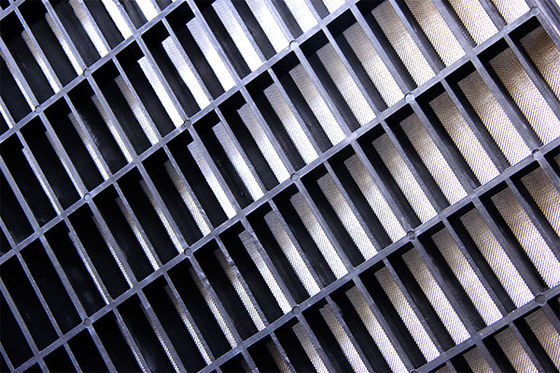

Shaker Screen has lighter weight and easy installation. Composite shaker screens provide longer life and greater screen area. High-capacity composite screens provide customers with a significant growth fluid capacity as well as an excellent resistance to blinding providing dryer solids discharge and a larger net usable screen area.


Shaker screens are used in raw material as stainless steel wire, metal wire sieve net and synthetic fiber screen three categories. Wire is 0.4 ~ 0.025 mm thickness of specifications. That is used mostly tabby organizations or twill seats shape organization. Metal net pore is clear, the net surface flat is correct, high temperature resistant, character such as wear-resisting, stainless steel screen also ability corrosion. Therefore, metal net much used in powder screening and oil filter. Our shale shaker screens are made of stainless steel which wear resistance, corrosion resistance ensure long service life. They are widely used in oil drilling, gas layer, pipeline crossing of excavation engineering.


Specification of TR Composite frame screen


Swaco MD-3 Series Screen
Mesh API20---API450
Dimension Length: 655mm
Width: 622mm
Weight 10 kgs
Screen layer 2 or 3 Layers
Wire mesh material S.S304 ,S.S316 (Customizable)
Frame material Composite material


Features of TR Replacement Swaco MD-3 Shaker Screen:


  • The iron framework is welded by robot automatically, with high welding strength, less manual intervention and good quality consistency.
  • Injection plastic is disposable plastic, with high temperature resistance of over 140 ℃, good toughness, so as to improve the seismic capacity and service life of the screen.
  • The screen hot pressing adopts four side tension technology, which is more flat than the same industry screen, better fit with the bottom screen, and longer service life.
  • The regular shape of the composite frame screen is more convenient for the screen to be repaired and used after the local damage of the screen through the plug, so as to further reduce the cost.
  • Compared with the iron frame screen, the effective area of the composite frame screen is increased by 10% - 20%.
  • The composite frame screen is not easy to rust, and the storage life is greatly extended. It can be stored for more than 5 years without affecting the use.

API RC13 SS316 Replacement Composite Vibrating Screen 0


Product Application


TR Swaco MD-2 shaker screens are widely used in oil & gas drilling, Drilling Waste Management, trenchless HDD, city bored piling, tunneling construction, Coal Bed Gas Solids Control System, micro-tunneling, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, mining, Water Drilling etc.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
