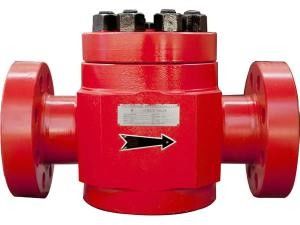

AISI 4130 Oilfield Drilling Wellhead Swing Check Valve

Swing Check Valve for Oilfield Wellhead

Product Overview

Swing check valve is full port design with swing disc that can be acted by the fluid flow which can protect against the media flow back. It is widely used for the oil & gas and petro-chemical industries. Valves are available in a complete range of body/bonnet materials and trims which can be used for various applications. The available working pressure is up to 15000 psi and bore sizes are from 1-13/16" to 4-1/16".

Valve body is machined of alloy steel forging with astronger machinery properties and reliable performance. Bonnet is connected with valve body with bolt, theseals include the sealing ring in the bonnet and the sealin the valve body.

Design Features of Our Wellhead Check Valve

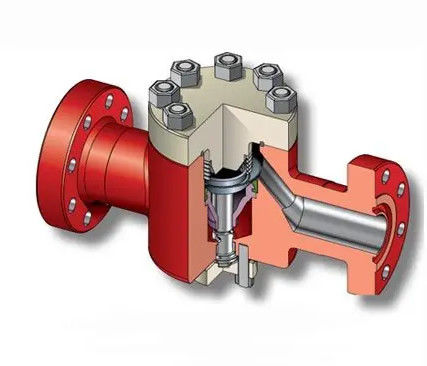

1. The product is designed and manufactured in full compliance with API spec 6A and can be used interchangeably with domestic and foreign equipment in compliance with API spec 6A. This valve is a check valve. It relies on the pressure of the medium to achieve the metal seal between the valve core and the valve body, the greater the medium pressure, the better the sealing performance. The valve cavity can withstand line pressure at any time.
2. The valve body is made of alloy steel forging, with strong mechanical properties, can withstand high pressure, with safe and reliable performance. The bonnet and valve body are bolted together, and the seal is the sealing ring on the bonnet and the inner wall of the valve body. The sealing performance is reliable. It provides minimal assembly clearance between bonnet and body (designed to be 0), thereby reducing erosion of bolts and holes by corrosive media and reducing bolt loads.
3. Hardalloy is hardfaced on the core and sealing surface of the valve body, so that it has good wear resistance and corrosion resistance. The core material should use sulfur-proof steel, and other parts should use the method of limiting hardness, so that the valve can be used in the environment containing H2S.
4. Install the valve body into the pipeline according to the flow direction on the valve body. The valve core by the upper and lower pressure to achieve movement and sealing so that the valve core can not be stuck.

Technical Specifications of Wellhead Check Valve

Our Service

1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
The optimaler price, the best quality, the fastest speed, the best service. Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
