Product Details:
Payment & Shipping Terms:
|
| Port Size: | 1-13/16"-7-1/16" | Working Pressure: | 2000-15000psi |
|---|---|---|---|
| Material: | AISI 4130 | Product Specification Levels: | PSL 1~4 |
| Performance Requirement: | PR1~2 | Material Class: | AA~FF |
| Temperature Level: | K, L, P, R, S, T, U | Body Material: | Carbon Steel |
| High Light: | AISI 4130 Swing Check Valve,15000psi Ss Swing Check Valve,Wellhead Swing Check Valve |
||

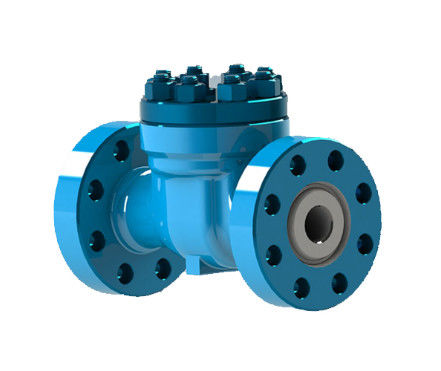

High Pressure Natural Gas Swing Check Valve for Wellhead
Product Overview

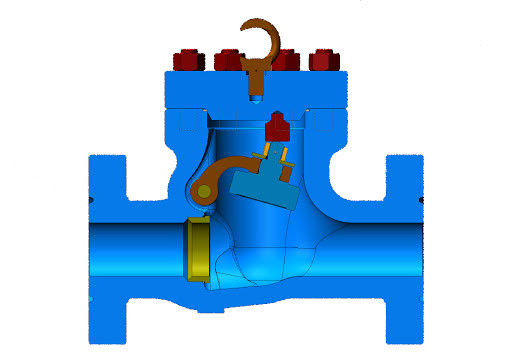

Check valve creates the metal-to metal seal by the pressure of the medium, the more the pressure is, the better the sealing effect is. Anytime the valve chamber can bear the pressure of the pipeline.The sealing face between valve core and valve body is welded with hard alloy with good abrasion resistance and anti-scour; the valve core is made of sulfide-resistance steel and the others adopt the process of hardness limit so the valve is able to be used in H2S condition.
The product is designed and manufactured according to API Spec 6A "Equipment Specification of Well-head & X'mas tree" and matched and interchangeablewith any equipment which conforms to API 6Aspecification.
Main Parameters of TR Wellhead Check Valve
1. One-way flow of working medium.
2. Working pressure: 2,000 psi ~ 20,000 psi
3. Nominal diameter: 2.1/16 "~ 4.1/16" (52mm ~ 103mm)
4. Working medium: oil, natural gas, mud, H2S and CO2 gas
5. Operating temperature: -46°C ~ 121°C (LU level)
6. Material level: AA, BB, CC, DD, EE, FF, HH
7. Specification level: PSL1 ~ 4
8. Performance level: PR1 ~ 2

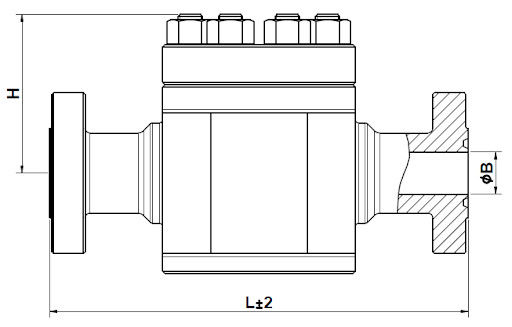

Technical Information of Wellhead Check Valve
| Product Name | Check Valve |
| Working Pressure | 2000 psi~15000 psi |
| Nominal Bore | 1 13/16”~7 1/16” |
| Temperature Level | K, L, P, R, S, T, U |
| Working Medium | oil, Nature gas, mud |
| Material | AISI 4130 (Integral Forged) |
| Body Material | Carbon Steel, Stainless Steel |
| Material Class | AA, BB, CC, DD, EE, FF |
| End Connection | API 6A Flange |
| Standards |
API 6A, API 16C NACE-MR0175 |
| Product Specification Level | PSL 1~PSL 4 |
| Performance Requirement | PR 1~PR 2 |
| Paint Color | Red or Customized |
| Application |
Mud Choke Manifold Kill Manifold Wellhead Christmas Tree Connection |
Xi'An TianRui Petroleum Machinery Equipment Company engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
