| Certification: | API | Catch Size: | 41-168mm |
|---|---|---|---|
| Connection Thread: | NC, REG, IF, TH | Material: | Alloy Steel, Carbon Steel |
| Usage: | Well Drilling, Downhole Drilling | Warranty: | 12 Months |
| High Light: | REG Drill Spare Parts,Alloy Steel Drill Spare Parts |
||

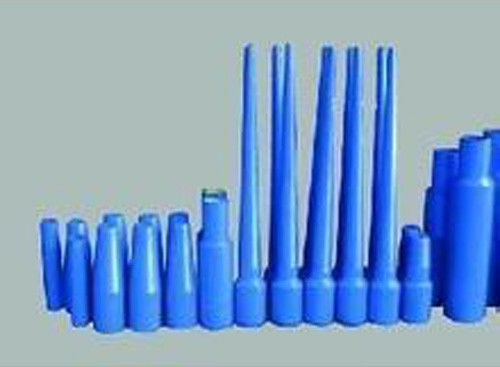

High-Grade Alloy Steel Fishing Tool Taper Tap Die Collar
Product Descrption

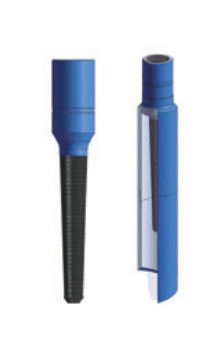

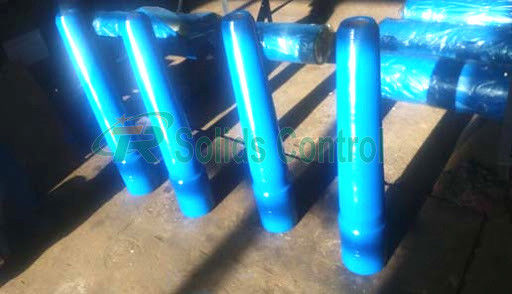

Taper tap is a fishing tool which making thread and engaging fish internally,such as drill pipe and tubing.It has high success rate for fishing tubular fishes with coupling.It works with right and left hand drill pipe,and other tools.It can be used in different fishing process.The taper tap is made of high quality alloy steel and processed by special heat treatment.
Taper tap is an effective tool used for catch the fish with inner bore by false threading, Especially to tubular goods with box coupling, the success rate of salvage will higher.
Standard: SY/T5114-2008
Technical Parameters of Fishing Taper Tap
| Type |
OD (mm) |
ID (mm) |
Fishing thread size(mm) |
Fishing hole Diameter range(mm) |
Total length (mm) |
||
| Taper samll diameter | Taper big diameter | Taper length | |||||
| GZ-NC26 | 86 | 13.5 | Φ38 | Φ60 | 352 | 43~55 | 560 |
| GZ-NC26 | 86 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 25 | Φ70 | Φ83 | 208 | 75~78 | 475 |
| GZ-NC31 | 105 | 20 | Φ43 | Φ70 | 432 | 48~65 | 800 |
| GZ-NC38 | 121 | 20 | Φ55 | Φ82 | 432 | 60~77 | 800 |
| GZ-NC50 | 156 | 25 | Φ86.5 | Φ108 | 344 | 89~103 | 800 |
| GZ-3 1/2REG | 108 | 18 | Φ33.7 | Φ65 | 500 | 38~60 | 800 |
| GZ5 1/2FH | 178 | 25 | Φ83.5 | Φ108 | 392 | 89~103 | 800 |
Die Collar is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and drill pipe.
The Die Collar are made up of high quality alloy steel and processed by special heat treatment, having the advantages of high strength, high toughness and easy tapping.
Technical Parameters of Our Fishing Die Collar
| Type | Connection | Total Length (mm) | Fishing ID range (mm) |
| MZ-2 3/8 REG-2 | 2 3/8 REG | 550 | 73-80 |
| MZ-3 1/2 REG-2 | 3 1/2 REG | 600 | 89-100 |
| MZ-NC31-Lh-1 | NC31LH | 880 | 55-85 |
| MZ-NC38-1 | NC38 | 1000 | 63.5-101.5 |
| MZ-NC50-1 | NC50 | 1050 | 150-185 |
| MZ-NC38-2 | NC38 | 900 | 101.6-127 |
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. main products include: shale shaker, mud agitator, drilling jar, fishing jar, shock sub, fishing tools, stabilizer, roller reamer, drill collars, drill pipes, tool joints and service equipment for surface drilling tools. Our products have been exported to America, South America, Saudi, Germany, Iran , Kazakhstan, India, Pakistan, Middle East, South Africa, Egypt and Columbia etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
