Product Details:
Payment & Shipping Terms:
|
| Certification: | API | Catch Size: | 41-168mm |
|---|---|---|---|
| Connection Thread: | NC, REG, IF, TH | Material: | Alloy Steel, Carbon Steel |
| Usage: | Well Drilling, Downhole Drilling | Warranty: | 12 Months |
| High Light: | Well Drilling Taper Tap,Downhole Taper Tap |
||

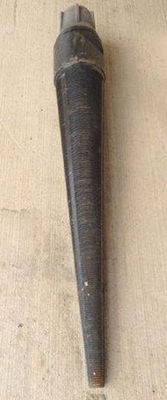

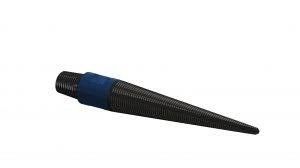

API Oil Well Fishing Tools Taper Tap with Lipped Guide
Product Descrption
The taper tap is a special fishing tool making thread on the inside wall of tube dropped objects such as drill pipe and oil tube.They are made with chip groove so as to make threads easily. The Taper tap and Die Collar are made up of high quality alloy steel and processed by special heat treatment, having the advantages of high strength, high toughness and easy tapping.
Taper tap is an effective tool used for catch the fish with inner bore by false threading, Especially to tubular goods with box coupling, the success rate of salvage will higher.
Standard: SY/T5114-2008
Xi'An TianRui Petroleum Machinery Equipment Company is a fast-growing professional petroleum equipment manufacturer and supplier, integrating petroleum equipment development & application and oilfield technical service into one. It is located in China's Xi'an City, Shaanxi Province.
Technical Specifications of Fishing Taper Tap
| Type |
OD (mm) |
ID (mm) |
Fishing thread size(mm) |
Fishing hole Diameter range(mm) |
Total length (mm) |
||
| Taper samll diameter | Taper big diameter | Taper length | |||||
| GZ-NC26 | 86 | 13.5 | Φ38 | Φ60 | 352 | 43~55 | 560 |
| GZ-NC26 | 86 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 25 | Φ70 | Φ83 | 208 | 75~78 | 475 |
| GZ-NC31 | 105 | 20 | Φ43 | Φ70 | 432 | 48~65 | 800 |
| GZ-NC38 | 121 | 20 | Φ55 | Φ82 | 432 | 60~77 | 800 |
| GZ-NC50 | 156 | 25 | Φ86.5 | Φ108 | 344 | 89~103 | 800 |
| GZ-3 1/2REG | 108 | 18 | Φ33.7 | Φ65 | 500 | 38~60 | 800 |
| GZ5 1/2FH | 178 | 25 | Φ83.5 | Φ108 | 392 | 89~103 | 800 |
Xi'An TianRui Petroleum Machinery Equipment Company Limite is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our main products include solid control equipment, rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools and cementing tools. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
