| Certification: | API | Catch Size: | 41-168mm |
|---|---|---|---|
| Connection Thread: | NC, REG, IF, TH | Material: | Alloy Steel, Carbon Steel |
| Usage: | Well Drilling, Downhole Drilling | Warranty: | 12 Months |
| High Light: | Oilfield Taper Tap,Fishing Die Collar Taper Tap |
||

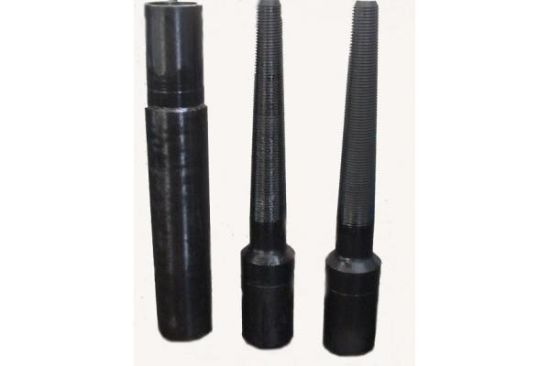

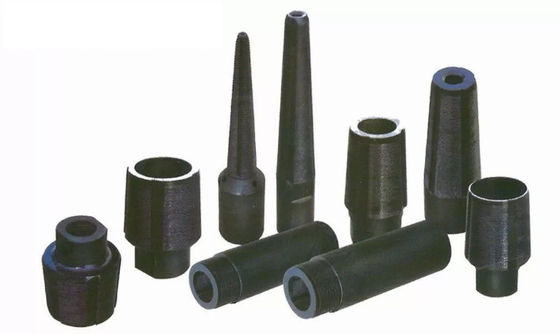

Oilfield Downhole Tools Fishing Die Collar Taper Tap
Product Overview
Taper tap is an effective tool used for catch the fish with inner bore by false threading, Especially to tubular goods with box coupling, the success rate of salvage will higher.
Standard: SY/T5114-2008
The tool are used go engage the outside diameter of a fish, usually in situations where conventional releasing overshots would not be a feasible option. They are designed to tap threads into the steel so that the fish can be retrieved or the fishing job can be continued.
Technical Specifications of Fishing Taper Tap
| Type |
OD (mm) |
ID (mm) |
Fishing thread size(mm) |
Fishing hole Diameter range(mm) |
Total length (mm) |
||
| Taper samll diameter | Taper big diameter | Taper length | |||||
| GZ-NC26 | 86 | 13.5 | Φ38 | Φ60 | 352 | 43~55 | 560 |
| GZ-NC26 | 86 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 25 | Φ70 | Φ83 | 208 | 75~78 | 475 |
| GZ-NC31 | 105 | 20 | Φ43 | Φ70 | 432 | 48~65 | 800 |
| GZ-NC38 | 121 | 20 | Φ55 | Φ82 | 432 | 60~77 | 800 |
| GZ-NC50 | 156 | 25 | Φ86.5 | Φ108 | 344 | 89~103 | 800 |
| GZ-3 1/2REG | 108 | 18 | Φ33.7 | Φ65 | 500 | 38~60 | 800 |
| GZ5 1/2FH | 178 | 25 | Φ83.5 | Φ108 | 392 | 89~103 | 800 |
Function: die collars are used go engage the outside diameter of a fish, usually in situations where conventional releasing overshots would not be a feasible option. They are designed to tap threads into the steel so that the fish can be retrieved or the fishing job can be continued.
Standard: SY/T5114-2008
Technical Parameters of Our Fishing Die Collar
| Type | Connection API |
Overall Length mm(inch) |
Fishing I.D.Range mm(inch) |
| GZ-NC31-LH-1 | NC31 LH | 1607.5(63-9/32) | 39~53(1-17/32~2-3/32) |
| GZ-NC31-2 | NC31 | 557(22-23/32) | 56~60(2-13/64~2-23/64) |
| GZ-NC38-7 | NC38 | 860(33-55/64) | 84~106(3-5/16~4-11/64) |
| GZ-NC38-8 | NC38 | 860(33-55/64) | 119~141(4-11/16~5-35/64) |
| GZ-NC38-9 | NC38 | 950(37-13/32) | 97~125(3-13/16~4-59/64) |
| GZ-NC38-10 | NC38 | 710(27-61/64) | 87~100(3-27/64~3-15/16) |
| GZ-NC50-11 | NC50 | 1130(44-31/64) | 82.5~121(3-1/4~4-49/64) |
| GZ-NC50-12 | NC50 | 930(36-5/8) | 69.9~95.3(2-3/4~3-3/4) |
Xi'An TianRui Petroleum Machinery Equipment Company is a professional manufacturer of drilling equipments and tools which is located in xi'an City, the centre of the triangle of Beijing, Tianjin and Shijiazhuang, enjoying convenient transportation.
Our products Including below three series with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
