Product Details:
Payment & Shipping Terms:
|
| Catch Size: | 41-168mm | Connection Thread: | NC, REG, IF, TH |
|---|---|---|---|
| Material: | Alloy Steel, Carbon Steel | Certification: | API |
| Usage: | Well Drilling, Downhole Drilling | Warranty: | 12 Months |
| High Light: | Downhole Drilling Die Collar,API Taper Tap Die Collar |
||
API 7-1 Fishing Tool Taper Tap / Die Collar
Product Overview
The Fishing Tap is made up of high quality alloy steel and processed by special heat treatment, having the advantages of high strength, high toughness and easy tapping. The taper tap is manufactured from high alloy steel and special heat treated.
The tool are used go engage the outside diameter of a fish, usually in situations where conventional releasing overshots would not be a feasible option. They are designed to tap threads into the steel so that the fish can be retrieved or the fishing job can be continued.
Technical Specifications of Fishing Taper Tap
| Type |
OD (mm) |
ID (mm) |
Fishing thread size(mm) |
Fishing hole Diameter range(mm) |
Total length (mm) |
||
| Taper samll diameter | Taper big diameter | Taper length | |||||
| GZ-NC26 | 86 | 13.5 | Φ38 | Φ60 | 352 | 43~55 | 560 |
| GZ-NC26 | 86 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 20 | Φ52 | Φ70 | 288 | 57~65 | 535 |
| GZ-NC31 | 105 | 25 | Φ70 | Φ83 | 208 | 75~78 | 475 |
| GZ-NC31 | 105 | 20 | Φ43 | Φ70 | 432 | 48~65 | 800 |
| GZ-NC38 | 121 | 20 | Φ55 | Φ82 | 432 | 60~77 | 800 |
| GZ-NC50 | 156 | 25 | Φ86.5 | Φ108 | 344 | 89~103 | 800 |
| GZ-3 1/2REG | 108 | 18 | Φ33.7 | Φ65 | 500 | 38~60 | 800 |
| GZ5 1/2FH | 178 | 25 | Φ83.5 | Φ108 | 392 | 89~103 | 800 |

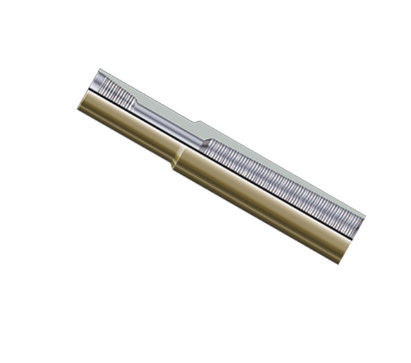

Our die collar is an external catch fishing tool designed to retrieved bubular members from the well bore. It is the most economical tool of its kind for freeing fish. . The hardened cutting teeth(wickers) are carbo-nitrided and machined on a shallow taper to provide an excellent grip for light duty pick-up jobs. Plain watertight wickers are furnished as standard equipment. Fluted wickers are also available on request.
When the hole size is considerably larger than the diameter of the fish, a guide can be assemble to the bottom of the die collar.
Technical Parameters of Our Fishing Die Collar
| Type | Connection API |
Overall Length mm(inch) |
Fishing I.D.Range mm(inch) |
| GZ-NC31-LH-1 | NC31 LH | 1607.5(63-9/32) | 39~53(1-17/32~2-3/32) |
| GZ-NC31-2 | NC31 | 557(22-23/32) | 56~60(2-13/64~2-23/64) |
| GZ-NC38-7 | NC38 | 860(33-55/64) | 84~106(3-5/16~4-11/64) |
| GZ-NC38-8 | NC38 | 860(33-55/64) | 119~141(4-11/16~5-35/64) |
| GZ-NC38-9 | NC38 | 950(37-13/32) | 97~125(3-13/16~4-59/64) |
| GZ-NC38-10 | NC38 | 710(27-61/64) | 87~100(3-27/64~3-15/16) |
| GZ-NC50-11 | NC50 | 1130(44-31/64) | 82.5~121(3-1/4~4-49/64) |
| GZ-NC50-12 | NC50 | 930(36-5/8) | 69.9~95.3(2-3/4~3-3/4) |
Xi'An TianRui Petroleum Machinery Equipment Company is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include oil drilling and service equipment, solid control equipment, oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Till now, we have become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
