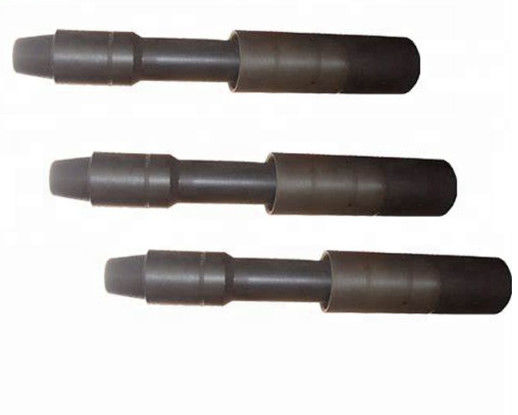

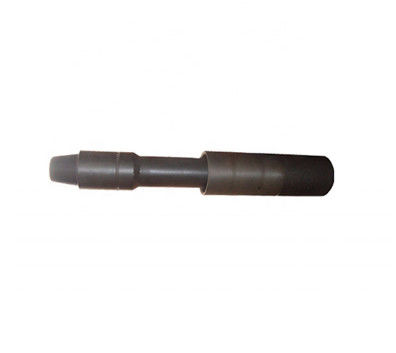

API 456mm Hole Size Oilfield Fishing Tool Junk Subs

Simple Design Oilfield Fishing Tool Junk Subs

Product Overview

During drilling process, LB type Junk Sub is applied mainly for fishing of shivers and fallen objects such as carbide tooth, drill bit and bearing which can’t be carried out of hole by conventional fluid circulation etc. It possesses important functions to keep hole toe cleaning, increase bit service life, reduce and prevent drill bit from unexpected damage. The tools are available with all sizes and super performance.

Specifications
1. API standard
2. Material: AISI 4145H chromium-molybdenum steel...
3. Type: cross over sub

Product Structure

Due to the fact that the O.D. of external bowl of fishing cup is bigger and a smaller circular space is available between external bowl of fishing cup and well hole; the mandrel diameter at cup mouth is larger so that it has a bigger annular space, therefore, the fluid at the cup mouth form a swirls and suddenly fall down so as to reduce the carrying capacity. By this way, some heavy objects will drop in cup and be fished out so that the purpose of cleaning ofhole toe is carried out.

Technical Parameters of Our Fishing Junk Sub

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. provides many kinds of solid control tools, coiled tubing tools, drilling tools, fishing tools, wellhead equipment etc. All our products are according to API standards. We not only have standard design products, but also provide products according to customer's requirements.

Our Service:
I. Equipment arrived at the scene, by my company to send technical personnel and service personnel arrived at the scene, the installation of equipment debugging and technical training.
II. Equipment from the date of acceptance, the warranty period of one year, the warranty period, equipment problems, we respond within 12 hours, if necessary, our service staff received a notice within 5 days (international) to reach the scene, the two sides Technical analysis, a product quality problems, we are responsible for free repair or replacement, more than the warranty period, we provide technical services and spare parts supply.
III. After the device is running, we will conduct a telephone tracking service, and regular user visits.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
