Fluid Circulation Junk Sub Downhole Oilfield Drill Spare Parts

API 7-1 Standard Oilfield Fishing Tool Junk Sub​

Product Overview

Junk Sub (Fishing Cup) is normally used to catch and remove junks that are too heavy to be circulated preventing them from settling at the bottom of the well-bore. Typical junks are shivers and fallen objects such as carbide tooth, drill bit and bearings which are too heavy to be removed from the well-hole through conventional fluid circulation. Junk Sub’s main function is to keep well bottom clean to increase bit service life, reduce and prevent drill bit from unexpected damage.

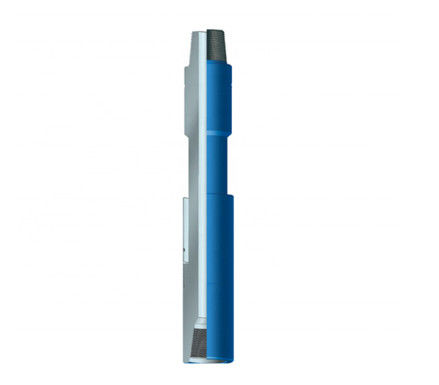

Product Structure

As the outer diameter of the external bowl is bigger, the space between the external bowl and the well hole is reduced guiding most of the fluid through the cup. The mandrel diameter at the cup mouth is bigger with larger annular space. Thus, the fluid forms a swirl at the cup mouth as the fluid flows down through the cup with a sudden reduction in capacity at the bottom. Through this working principle, some heavy objects will drop in the cup and be fished out, ensuring that the well-bore bottom is cleaned.

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. main products include: shale shaker, mud agitator, drilling jar, fishing jar, shock sub, fishing tools, stabilizer, roller reamer, drill collars, drill pipes, tool joints and service equipment for surface drilling tools. Our products have been exported to America, South America, Saudi, Germany, Iran , Kazakhstan, India, Pakistan, Middle East, South Africa, Egypt and Columbia etc.

Technical Parameters of Our Fishing Junk Sub

Our Service:
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.

The optimaler price, the best quality, the fastest speed, the best service. Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
