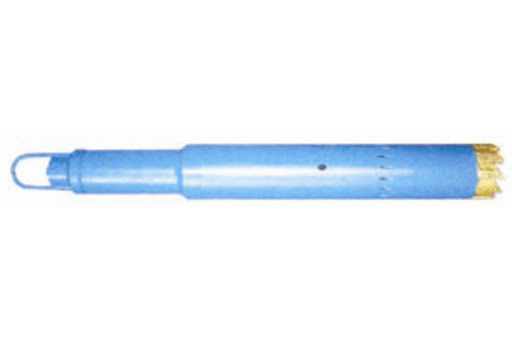

Downhole Fluid LL Type Reverse Circulation Junk Basket

Downhole Fluid LL Type Reverse Circulation Junk Basket
Downhole Fluid LL Type Reverse Circulation Junk Basket Downhole Fluid LL Type Reverse Circulation Junk Basket Downhole Fluid LL Type Reverse Circulation Junk Basket

Large Image :  Downhole Fluid LL Type Reverse Circulation Junk Basket

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRLL-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Detailed Product Description
Size: 89 ~ 381mm Model Number: LL-F89 ~ LL-F381
Material: Alloy Steel, Carbon Steel Certification: API
Usage: Well Drilling, Downhole Drilling Warranty: 12 Months
High Light:

Downhole Junk Basket

,

Reverse Circulation Junk Basket

Downhole Fishing Tool LL Type Reverse Circulation Junk Basket



Product Overview



Model “LL” Reverse Circulating Junk Basket is designed to remove small pieces of junk such as bit cones, hand tools, slips, etc from the bottom of well. Its unique feature is utilizing the principle of reverse fluid circulation. Moreover, it can be used as a special coring tool.

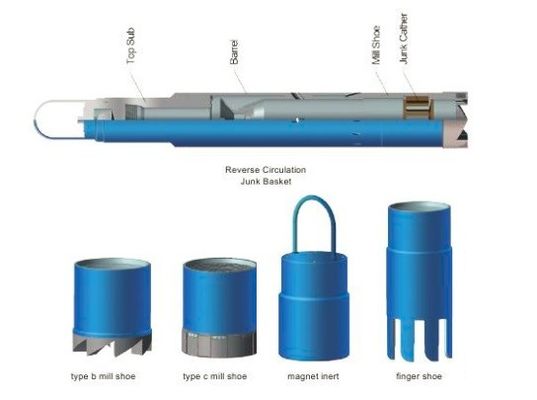

Our TR Reverse Circulation Junk Basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10” core has been cut. Stop rotation and circulation and pull the tool from the hole.



Specifications
Reverse Circulation Junk Basket
1. 360 degree recovery surface
2. Cutting of core not required
3. API-7-1 standard



Specifications of Our Reverse Circulating Junk Basket

type



Barrel O.D.

(mm)



Fish Max.O.D.

(mm)



Ball Dia.

(mm)



Thread Conn



Hole Size

(mm)

LL-381 381 282 55 7 5/8REG 406-444
LL-318 318 248 55 6 5/8REG 349-406
LL-F286 286 217 55 6 5/8REG 320-346
LL-F279 279 211 55 6 5/8REG 300-341
LL-F254 254 195 55 6 5/8REG 275-295
LL-F245 245 192 50 NC50 275-295
LL-F232 232 179 50 NC50 255-270
LL-F200 200 154 45 NC50 223-241
LL-F195 195 149 42 NC50 215-241
LL-F178 178 130 42 NC50 198-209
LL-F168 168 123 42 NC50 190-209
LL-F130 130 94 40 NC31 155-165
LL-F121 121 90 35 NC31 142-152
LL-F114 114 82 35 NC31 130-140
LL-F97 97 62 30 NC26 117-127
LL-F89 89 55 30 NC26 108-114
