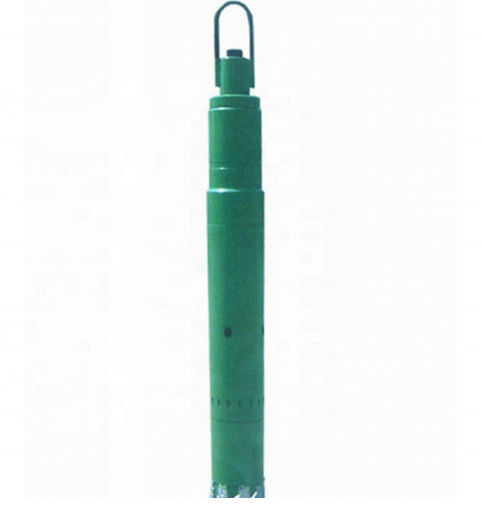

Reverse Circulation Oilfield Downhole Drilling Junk Basket

Oilfield Downhole Reverse Circulation Drilling Junk Basket

Product Overview

TR Reverse Circulation Junk Basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10” core has been cut. Stop rotation and circulation and pull the tool from the hole.

The tool can also be used for drilling full gauge holes or hole reaming with thecuttings being retained in the basket.

How to order:
Sizes, connections, Fish Size;
Please specify special requirements.

Specifications
Reverse Circulation Junk Basket
1. 360 degree recovery surface
2. Cutting of core not required
3. API-7-1 standard

Technical Specifications of Our Reverse Circulating Junk Basket

Xi'An TianRui Petroleum Machinery Equipment Company engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, solid control equipment, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
