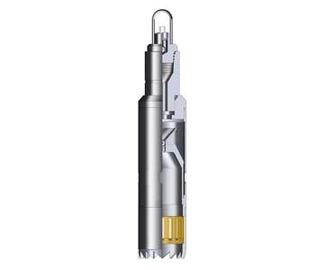

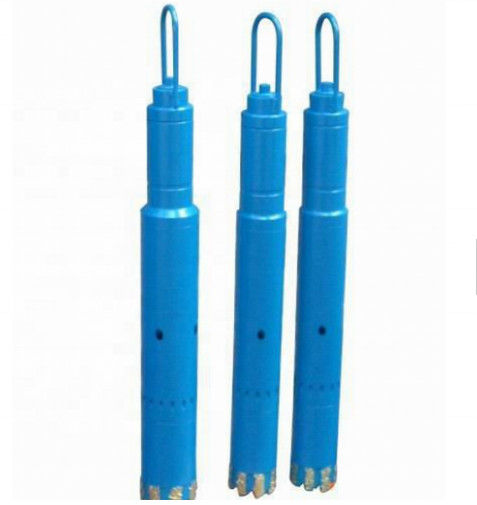

Fishing Tools Reverse Circulating Junk Basket
Product Descrption

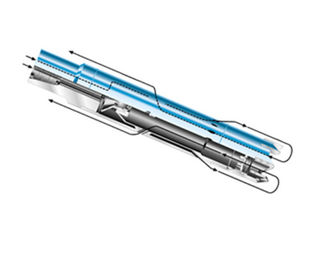

Reverse Circulation Junk Basket is ideally suited to the recovery of toolslost through the rotary, pieces of wireline, particles of slips, bit cones and the generalaccumulation of junk, which can impede the progress of drilling. By substituting TR Magnet Insert for the catcher, the tool is readily converted into a Reverse Circulation Fishing Magnet with all the reverse flow advantages of the junk basket.
The tool can also be used for drilling full gauge holes or hole reaming with thecuttings being retained in the basket.
When ordering, please specify:
1. Top connection
2. OD and type of Mill shoe
3. Max. O. D. Of fish
Specifications
Reverse Circulation Junk Basket
1. 360 degree recovery surface
2. Cutting of core not required
3. API-7-1 standard
Technical Parameters of Our Reverse Circulating Junk Basket
| type |
Barrel O.D. (mm) |
Fish Max.O.D. (mm) |
Ball Dia. (mm) |
Thread Conn |
Hole Size (mm) |
| LL-381 | 381 | 282 | 55 | 7 5/8REG | 406-444 |
| LL-318 | 318 | 248 | 55 | 6 5/8REG | 349-406 |
| LL-F286 | 286 | 217 | 55 | 6 5/8REG | 320-346 |
| LL-F279 | 279 | 211 | 55 | 6 5/8REG | 300-341 |
| LL-F254 | 254 | 195 | 55 | 6 5/8REG | 275-295 |
| LL-F245 | 245 | 192 | 50 | NC50 | 275-295 |
| LL-F232 | 232 | 179 | 50 | NC50 | 255-270 |
| LL-F200 | 200 | 154 | 45 | NC50 | 223-241 |
| LL-F195 | 195 | 149 | 42 | NC50 | 215-241 |
| LL-F178 | 178 | 130 | 42 | NC50 | 198-209 |
| LL-F168 | 168 | 123 | 42 | NC50 | 190-209 |
| LL-F130 | 130 | 94 | 40 | NC31 | 155-165 |
| LL-F121 | 121 | 90 | 35 | NC31 | 142-152 |
| LL-F114 | 114 | 82 | 35 | NC31 | 130-140 |
| LL-F97 | 97 | 62 | 30 | NC26 | 117-127 |
| LL-F89 | 89 | 55 | 30 | NC26 | 108-114 |
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. is a professional supplier of various petroleum equipment, including rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
