7 5/8REG Thread 381mm Downhole Drill Spare Parts

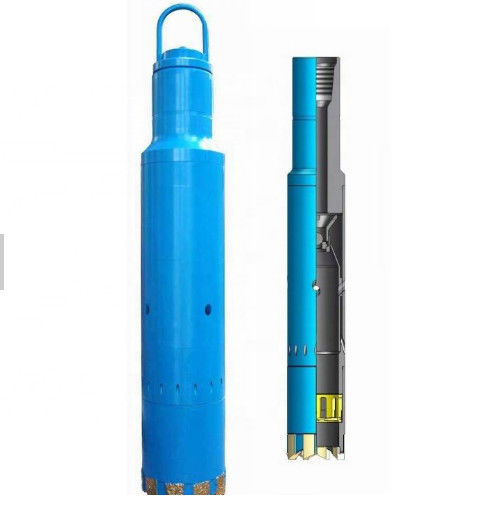

Reverse Circulating Junk Basket for Downhole Fishing Tools

Product Overview

Reverse circulation junk basket is used to catch all kinds of small junk objects such as cones,cutters,hand tools from bottom well. During drilling operation, it produces a local reverse circulation of fluid at well core so as to effect a complete recovery of junk in the junk basket.

Product Operation

TR Reverse Circulation Junk Basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10” core has been cut. Stop rotation and circulation and pull the tool from the hole.

Technical Data of Our Reverse Circulating Junk Basket

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. engages into the designing, developing, testing, manufacturing, repairing, and drilling service. Its business covers drilling rig, workover rig, solids control equipment, drilling rig supporting and drilling strings and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard. Looking forward to cooperating with you!

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
