Reverse Circulation Junk Basket API Drill Spare Parts

Reverse Circulation Junk Basket API Drill Spare Parts
Reverse Circulation Junk Basket API Drill Spare Parts Reverse Circulation Junk Basket API Drill Spare Parts Reverse Circulation Junk Basket API Drill Spare Parts

Large Image :  Reverse Circulation Junk Basket API Drill Spare Parts

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Detailed Product Description
Certification: API Model Number: LL-F89 ~ LL-F381
Size: 89 ~ 381mm Material: Alloy Steel, Carbon Steel
Usage: Well Drilling, Downhole Drilling Warranty: 12 Months
High Light:

Reverse Circulation Junk Basket

,

API Drill Spare Parts

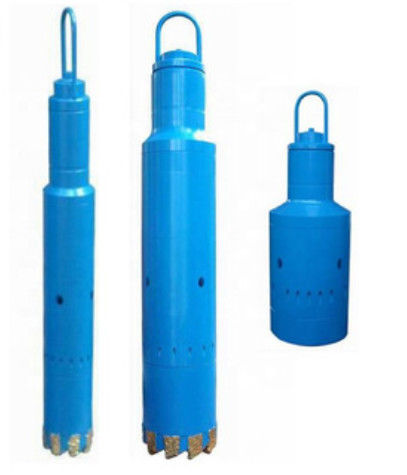

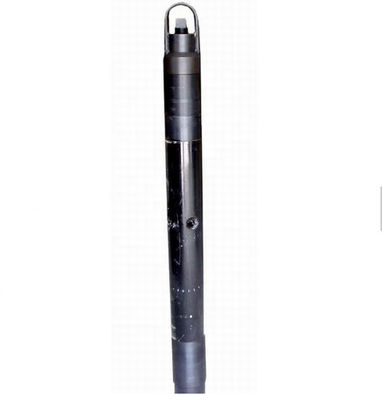

Oilfield API 7-1 LL-F Type Reverse Circulation Junk Basket



Product Overview



Reverse Circulation Junk Basket (RCJB) is designed to remove all types of small junk objects from the hole. The tool’s main feature eliminates pulling a wet string. Even when the tool is fitted with a magnet insert, reverse circulation is maintained.



Operation


Reverse Circulation Junk Basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10” core has been cut. Stop rotation and circulation and pull the tool from the hole.



Technical Parameters of Our Reverse Circulating Junk Basket

type



Barrel O.D.

(mm)



Fish Max.O.D.

(mm)



Ball Dia.

(mm)



Thread Conn



Hole Size

(mm)

LL-381 381 282 55 7 5/8REG 406-444
LL-318 318 248 55 6 5/8REG 349-406
LL-F286 286 217 55 6 5/8REG 320-346
LL-F279 279 211 55 6 5/8REG 300-341
LL-F254 254 195 55 6 5/8REG 275-295
LL-F245 245 192 50 NC50 275-295
LL-F232 232 179 50 NC50 255-270
LL-F200 200 154 45 NC50 223-241
LL-F195 195 149 42 NC50 215-241
LL-F178 178 130 42 NC50 198-209
LL-F168 168 123 42 NC50 190-209
LL-F130 130 94 40 NC31 155-165
LL-F121 121 90 35 NC31 142-152
LL-F114 114 82 35 NC31 130-140
LL-F97 97 62 30 NC26 117-127
LL-F89 89 55 30 NC26 108-114



Reverse Circulation Junk Basket API Drill Spare Parts 0



Xi'An TianRui Petroleum Machinery Equipment Company Limite is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our main products include solid control equipment, rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools and cementing tools. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
