Product Details:
Payment & Shipping Terms:
|
Size: | 1/2"-48" | Working Pressure: | -46ºC-121ºC(L-U) |
---|---|---|---|
Connection: | Flange Ends | Specification Class: | PSL1-PSL4 |
Performance Class: | PR1-PR2 | Material: | Carbon Steel, Forged Steel |
Standard: | API 6A | ||
High Light: | Double Studded Adapter Flange,Oilfield Drill Spare Parts |

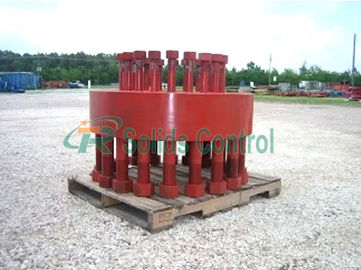

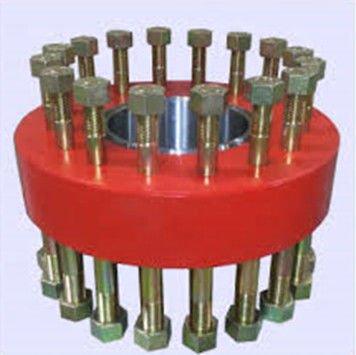

Red Color Double Studded Adapter Flanges for Oilfield
Product Overview
Double Studded Adapter Flange is a combination of flanges of different sizes and pressure ratings. We supplies DSAF (Double Studded Adapter Flange) in various sizes and pressure ratings as per customer's specified thickness.
A Double Studded Adapter (DSA) can be used to connect flanges with any combination of sizes and pressure ratings. We have access to all sizes and pressure ratings Double Studded Adapters (DSA) used for oilfield applications. We offer prospective buyers an extensive selection of quality new and used oilfield equipment, including 18 3/4″ 15K Double Studded Adapters (DSA’s) to choose from at competitive market prices.
Procedures of Our Double Studded Adapter Flanges:
(1) OEM and custom-made service.
(2) Full machining, primer painting, and surface treatment.
(3) Full material testing process.
(4) Machinery properties and Chemical components testing after raw casting
(5) Hardness checking after heat treatment
(6) Dimensions testing after machining
(7) Quality and production control checks though all the following flow:
Technical Parameters of Our Double Studded Adapter Flanges
Working pressure | 2000PSI-20000PSI |
Working medium | oil,natural gas,mud |
Working temperature | -46ºC-121ºC(L-U) |
Material class | AA -HH |
Specification class | PSL1-PSL4 |
Performance class | PR1-PR2 |
Material | AISI 4130(forged)/ SS316/Inconel 625 |
Studs & Nuts Coating | Zinc Coated, Cadmium Coated, Xylan Coated |
Cladding Materials:
Stainless Steel 304/304L and 316/316L, 317L, 347, 904L, 410
Inconel® 600/625 Incoloy® 800/825
Duplex Stainless Steel SS31803, 2205, SS32760, 2507, 2209
Hastelloy® C276, C22
Monel K-500, 400
Other Special Alloy
Xi'An TianRui Petroleum Machinery Equipment Company Limite is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our main products include solid control equipment, rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools and cementing tools. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
