Size: | 1/2"-48" | Working Pressure: | -46ºC-121ºC(L-U) |
---|---|---|---|
Connection: | Flange Ends | Specification Class: | PSL1-PSL4 |
Performance Class: | PR1-PR2 | Material: | Carbon Steel, Forged Steel |
Standard: | API 6A | ||
High Light: | Double Studded Oil Drilling Parts,Wellhead Oil Drilling Parts |
Customized Design Wellhead Double Studded Adopter Flanges
Product Descrption

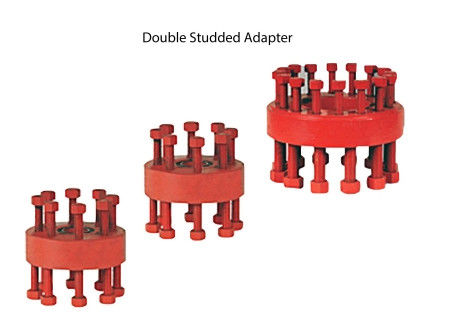

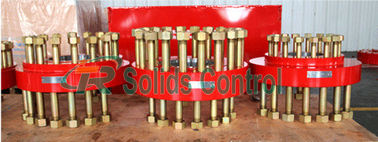

DSA - Double Studded Adapter flange is the part which is often used in the wellhead system, DSA is designed and manufactured in accordance with API 6A standard,DSA usually has double studded flange connections. we have all sizes and pressure ratings DSA used for oilfield applications.
Double studded adapter flanges are commonly utilised to connect and adapt flanges with different nominal sizes, pressure ratings, and applications. Manufactured according to ISO10423/API-6A PSL-2,PR-1,DD, L-U,we can also produce according to the customer's requirement.
TR takes "Be the world's first-class equipment provider of oil & gas development and utilization." as a goal and "provide customers with the highest quality products and technical services" as our mission. It has always put great emphasis on integrity, met customer needs and offered customer best service wholeheartedly.
Technical information of the wellhead DSA:
Product Name: Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA)
Size: 1-13/16" - 30"
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI
Material: AISI 4130(forged)/ SUS316/Inconel 625
Studs & Nuts Coating: Zinc Coated, Cadmium Coated, Xylan Coated
Temp Class: L-U
Material Class: AA, BB, CC, DD, EE, FF
Working Medium: Petroleum, Natural Gas, Mud etc
Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
Performance Requirement: PR1, PR2
Main Specifications of Our Double Studded Adapter Flanges
Working pressure | 2000PSI-20000PSI |
Working medium | oil,natural gas,mud |
Working temperature | -46ºC-121ºC(L-U) |
Material class | AA -HH |
Specification class | PSL1-PSL4 |
Performance class | PR1-PR2 |
Material | AISI 4130(forged)/ SS316/Inconel 625 |
Studs & Nuts Coating | Zinc Coated, Cadmium Coated, Xylan Coated |
Our Service:
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by Zhuohong at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Zhuohong will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Xi'An TianRui Petroleum Machinery Equipment Company is well-reputed manufacturer and exporter of Oil and Gas Equipment. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
