Wellhead System Flange Ends DSA Oilfield Spare Parts

Wellhead System Flange Ends DSA Oilfield Spare Parts
Wellhead System Flange Ends DSA Oilfield Spare Parts Wellhead System Flange Ends DSA Oilfield Spare Parts Wellhead System Flange Ends DSA Oilfield Spare Parts

Large Image :  Wellhead System Flange Ends DSA Oilfield Spare Parts

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRZFL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Pcs Per Month
Detailed Product Description
Size: 1/2"-48" Working Pressure: -46ºC-121ºC(L-U)
Connection: Flange Ends Specification Class: PSL1-PSL4
Performance Class: PR1-PR2 Material: Carbon Steel, Forged Steel
Standard: API 6A
High Light:

Flange Ends Oilfield Spare Parts

,

DSA Oilfield Spare Parts

Oil and Gas Drilling Double Studded Adapter Flange



Product Descrption

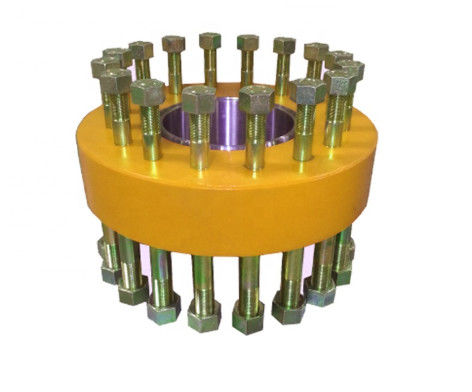

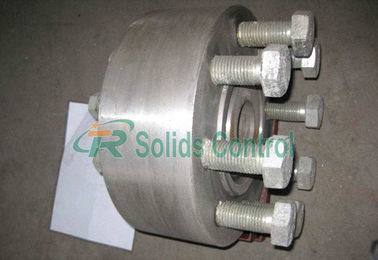

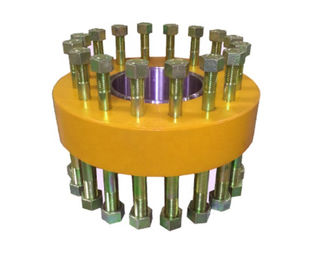

A Double Studded Adapter (DSA) can be used to connect flanges with any combination of sizes and pressure ratings. We have access to all sizes and pressure ratings Double Studded Adapters (DSA) used for oilfield applications. We offer prospective buyers an extensive selection of quality new and used oilfield equipment, including 18 3/4″ 15K Double Studded Adapters (DSA’s) to choose from at competitive market prices.



Xi'An TianRui Petroleum Machinery Equipment Company is with perfect attitude, product and service. We are going to make further development together with customers at home and abroad. We will always be an old friend give you best both price product quality and service! We deserve your trust!



Design Standards:
ASME B16.5, API 6A, API 17D, MSS SP-44,
ASME VIII Div. 2.0, DNV OS F101,
ISO 15590-2, ASME B31.3, ASME B31.8



Materials:
ASTM A105/A105N, ASTM A350 LF2 CL2, A350 LF6 CL2
ASTM A694 F42, F46, F52, F60, F65, F70
ASTM A182 F304/304L, F316/316L
API 45K, 60K, 75K
AISI 4130 (M), 4140, 4340, 8630(M)
ASTM A182 F51/UNS S31803, F53/UNS S32750



Main Benefits of Our Double Studded Adapter Flange:


1. DSA - Double Studded Adapter flange is the part which is often used in the wellhead system.
2. DSA is designed and manufactured in accordance with API 6A standard, PSL-1 thru PSL-3. Sour Service is available and all H2S service parts conform to the latest NACE specifications.
3. DSA are used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
4.Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.



Technical Parameters of Our Double Studded Adapter Flanges



Working pressure 2000PSI-20000PSI
Working medium oil,natural gas,mud
Working temperature -46ºC-121ºC(L-U)
Material class AA -HH
Specification class PSL1-PSL4
Performance class PR1-PR2
Material AISI 4130(forged)/ SS316/Inconel 625
Studs & Nuts Coating Zinc Coated, Cadmium Coated, Xylan Coated



Wellhead System Flange Ends DSA Oilfield Spare Parts 0



Xi'An TianRui Petroleum Machinery Equipment Company is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include oil drilling and service equipment, solid control equipment, oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Till now, we have become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
