Product Details:
Payment & Shipping Terms:
|
| Size: | 1/2"-48" | Working Pressure: | -46ºC-121ºC(L-U) |
|---|---|---|---|
| Connection: | Flange Ends | Specification Class: | PSL1-PSL4 |
| Performance Class: | PR1-PR2 | Material: | Carbon Steel, Forged Steel |
| Standard: | API 6A | ||
| High Light: | API 6A Drill Spare Parts,Wellhead Drill Spare Parts |
||

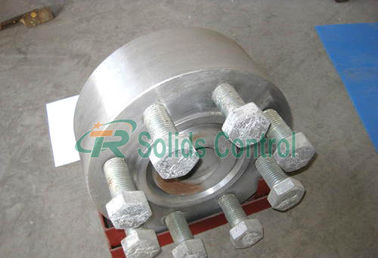

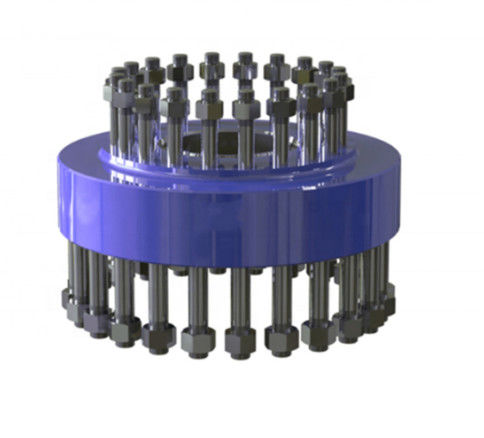

API 6A Wellhead Double Studded Adapter Flanges
Product Descrption
DSAF (Double Studded Adapter Flange) is a combination of flanges of different sizes and pressure ratings. We supplied DSAF (Double Studded Adapter Flange) in various sizes and pressure ratings as per customer’s specified thickness, consistent with design considerations.
All of our double studded adapter flanges(DSAF) are fully designed, manufactured, and tested according to API 6A and NACE MR0175 standards. The standard material is high quality integral forged AISI4130 alloy. Available in sizes from 1-13/16" to 30" and working pressure up to 15000PSI. For sour service, all ring grooves can be inlaid with stainless steel SS316 or inconel 625 for better protection. The studs and nuts are available with Zinc Coated, Cadmium Coated, or Xylan Coated. Other sizes, material, and pressure ratings are also available upon request. Aside from API6A double studded adapter flanges(DSAF), we also produce and supply other types API 6A flanges, such as threaded flanges, spacer spool flanges, blind flanges, companion flanges, target flanges, test flanges, and adapter spools for all client needs.
Design Features of Our Double Studded Adapter Flange:
1. DSA - Double Studded Adapter flange is the part which is often used in the wellhead system.
2. DSA is designed and manufactured in accordance with API 6A standard, PSL-1 thru PSL-3. Sour Service is available and all H2S service parts conform to the latest NACE specifications.
3. DSA are used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
4.Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
Technical Parameters of Our Double Studded Adapter Flanges
| Working pressure | 2000PSI-20000PSI |
| Working medium | oil,natural gas,mud |
| Working temperature | -46ºC-121ºC(L-U) |
| Material class | AA -HH |
| Specification class | PSL1-PSL4 |
| Performance class | PR1-PR2 |
| Material | AISI 4130(forged)/ SS316/Inconel 625 |
| Studs & Nuts Coating | Zinc Coated, Cadmium Coated, Xylan Coated |
Xi'An TianRui Petroleum Machinery Equipment Company is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include oil drilling and service equipment, solid control equipment, oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Till now, we have become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
