Product Details:
Payment & Shipping Terms:
|
Size: | 1/2"-48" | Working Pressure: | -46ºC-121ºC(L-U) |
---|---|---|---|
Connection: | Flange Ends | Specification Class: | PSL1-PSL4 |
Performance Class: | PR1-PR2 | Material: | Carbon Steel, Forged Steel |
Standard: | API 6A | ||
High Light: | API Double Studded Adapter,Wellhead Double Studded Adapter |

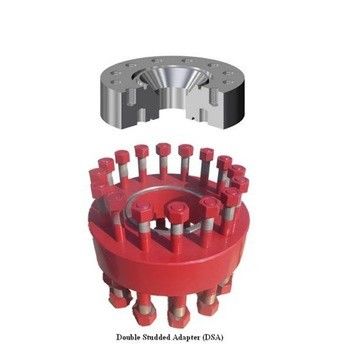

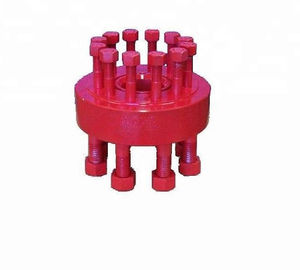

API Oilfield Double Studded Adapter for Wellhead
Product Descrption
Double studded adapter flange is a combination of flanges of different sizes and pressure ratings.
We supply ideal DSA for reliable and consistent performance on their production system. Our adapter flanges are in various sizes and pressure ratings as per customer's specified thickness, consistent with design considerations. It is the important device to connection the different flange for wellhead, so the material of the body and studs and nuts shall be conforms the related requirements. The size is in accordance with API 16A flange certification.
Manufactured according to ISO10423/API-6A PSL-2,PR-1,DD, L-U,we can also produce according to the customer's requirement.
Product Name: Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA)
Size: 1-13/16" - 30"
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI
Material: AISI 4130(forged)/ SUS316/Inconel 625
Studs & Nuts Coating: Zinc Coated, Cadmium Coated, Xylan Coated
Temp Class: L-U
Material Class: AA, BB, CC, DD, EE, FF
Working Medium: Petroleum, Natural Gas, Mud etc
Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
Performance Requirement: PR1, PR2
Technical Specifications of Our Double Studded Adapter Flanges
Working pressure | 2000PSI-20000PSI |
Working medium | oil,natural gas,mud |
Working temperature | -46ºC-121ºC(L-U) |
Material class | AA -HH |
Specification class | PSL1-PSL4 |
Performance class | PR1-PR2 |
Material | AISI 4130(forged)/ SS316/Inconel 625 |
Studs & Nuts Coating | Zinc Coated, Cadmium Coated, Xylan Coated |
Our Service
I. Equipment arrived at the scene, by my company to send technical personnel and service personnel arrived at the scene, the installation of equipment debugging and technical training.
II. Equipment from the date of acceptance, the warranty period of one year, the warranty period, equipment problems, we respond within 12 hours, if necessary, our service staff received a notice within 5 days (international) to reach the scene, the two sides Technical analysis, a product quality problems, we are responsible for free repair or replacement, more than the warranty period, we provide technical services and spare parts supply.
III. After the device is running, we will conduct a telephone tracking service, and regular user visits.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
