Product Details:
Payment & Shipping Terms:
|
| Outer Diameter: | 4-1/2" ~ 20" | Working Pressure: | 21Mpa-35Mpa |
|---|---|---|---|
| Material: | Carbon Steel, Alloy Steel | Processing Type: | Forging |
| Standard: | API, API 5CT | Connect Thread: | NC IF REG |
| Usage: | Well Drilling | Warranty: | 1 Year |
| High Light: | 21Mpa Drill Spare Parts,Downhole Drill Spare Parts |
||

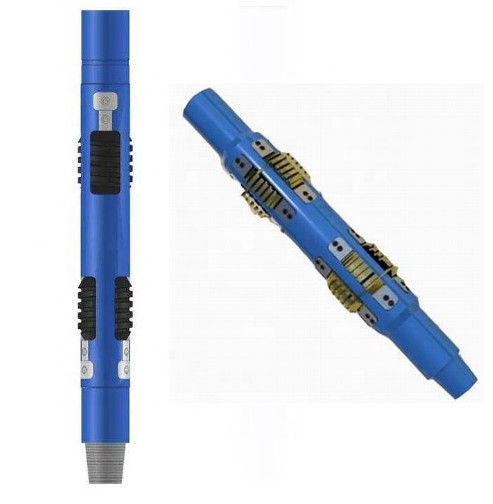

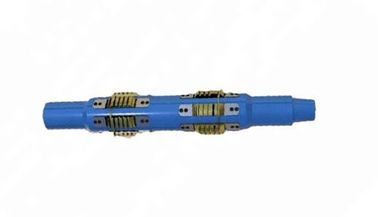

Oilfield Downhole Cleaning Tools Casing Scraper
Product Overview
Casing scraper is one of auxiliary tools in well completion, testing and downhole working. It is mainly used for cleaning cement, sand, residual bullets, rag, and otherobjects on casing inner surface, in order to keep casing inner surface cleaning and the drilling tools working normally.There are sufficient blades in the body to completely scrape the casing surface without rotating the tool.
It is one kind of new type casing scraper, not only as general fixed casing scraper, but also used as a rotating type structure casing scraper. If as a fixed casing scraper, as long as increase adjustable pad locates in upper sub to make it non-rotate, otherwise decrease adjustable pad. It will be used as a rotating casing scraper.
Operation
The Casing Scraper is normally connected to the work string with a drill bit attached at the bottom. Simply run the scraper into the casing or tubing using rotation or spudding to clean the inside wall of the pipe.
Main Characterstics of Our Casing Scraper:
Technical Data of TR Downhole Casing Scraper
| Type | Mandrel O.D. (mm) | Max. O.D of blade extension (mm) | Min O.D of blade extension (mm) | Thread type | Total length (mm) |
| GX114 | 92 | 111 | 92 | 2 3/8 REG | 880 |
| GX127 | 103 | 121 | 103 | 2 3/8REG | 880 |
| GX140 | 110 | 133 | 115 | NC31 | 1000 |
| GX146 | 110 | 139 | 121 | NC31 | 1000 |
| GX168 | 130 | 162 | 137 | 3 1/2REG | 1150 |
| GX178 | 136 | 170 | 146 | 3 1/2REG | 1150 |
| GX194 | 136 | 186 | 162 | 3 1/2REG | 1200 |
| GX219 | 142 | 212 | 185 | 4 1/2REG | 1400 |
| GX245 | 200 | 238 | 210 | 4 1/2REG | 1500 |
| GX273 | 228 | 268 | 237 | 6 5/8REG | 1500 |
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.
It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
