Product Details:
Payment & Shipping Terms:
|
| Outer Diameter: | 4-1/2" ~ 20" | Working Pressure: | 21Mpa-35Mpa |
|---|---|---|---|
| Material: | Carbon Steel, Alloy Steel | Processing Type: | Forging |
| Standard: | API, API 5CT | Connect Thread: | NC IF REG |
| Usage: | Well Drilling | Warranty: | 1 Year |
| High Light: | Oilfield Drill Spare Parts,Casing Scraper Drill Spare Parts |
||

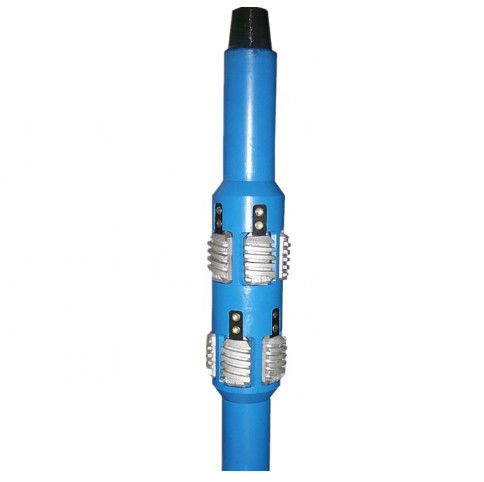

Casing Scraper for Oilfield Workover and Downhole Cleaning Tools
Product Overview
Casing scraper is mainly used in cleaning cement, sand, residual bullets,rag, and other objects on the casing inner surface. Keeping casing inner surface cleaning. in order to trip all kinds of downhole tools. ln addition, packer and other similar tools also need a clearing casing inner surface, the objects on the casing inner surface will hinder the normally working of these tools.
Manufactured from alloy steel and heat treated to provide strengh and durability, each scraper must pass rigid non-destructive testing to ensure the highest quality product.
Use:
1. Before the casing scraper run into the down hole, the hasten moment of the sub must be the same as the running pipe’s.
2. Before run into the well, check whether the type of the casing scraper is in accordance with the casing’s specification; whether the blade is worn or not; whether the screw is fasten.
3. Protect personal safety when using, prevent injured, damaged, scarred and other accident harm.
RFQ:
1. How do you transport the goods?
We transport the goods by container. we possesses long term cooperation with ship agency which can provide you lowest shipping fee. For samples we can send by express.
2. Can you satisfy my special requirement?
Definitely! we have strong design capacity and R&D capacity!
3. Which shipment terms can you accept?
EXW FOB CNF CIF DDU DDP
Technical Parameters of TR Oilfield Downhole Casing Scraper
| Type | Mandrel O.D. (mm) | Max. O.D of blade extension (mm) | Min O.D of blade extension (mm) | Thread type | Total length (mm) |
| GX114 | 92 | 111 | 92 | 2 3/8 REG | 880 |
| GX127 | 103 | 121 | 103 | 2 3/8REG | 880 |
| GX140 | 110 | 133 | 115 | NC31 | 1000 |
| GX146 | 110 | 139 | 121 | NC31 | 1000 |
| GX168 | 130 | 162 | 137 | 3 1/2REG | 1150 |
| GX178 | 136 | 170 | 146 | 3 1/2REG | 1150 |
| GX194 | 136 | 186 | 162 | 3 1/2REG | 1200 |
| GX219 | 142 | 212 | 185 | 4 1/2REG | 1400 |
| GX245 | 200 | 238 | 210 | 4 1/2REG | 1500 |
| GX273 | 228 | 268 | 237 | 6 5/8REG | 1500 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and cementing accessories since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
